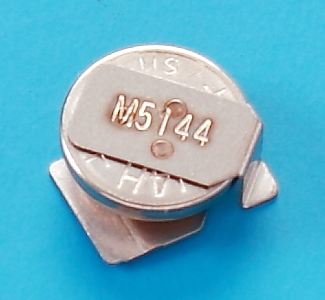

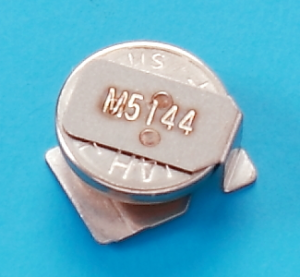

SPECIFICATIONS

Nominal Voltage(V)  3
Charge Voltage*1 (V)
(Standard Charge Voltage)
2.8 to 3.1
Nominal Capacity
(Voltage Range V)(mAh)
1.0 (3.1V ~2.0V)
Internal Impedance*2 (Ω) 600
Standard Charge
Discharge Current(mA)
0.005
Cycle Life *3 (Time)50%
D.O.D(Depth of Discharge)
300 (10% D.O.D*4)
Diameter(mm) 4.8
Height(mm) 1.4
Weight(g) 0.07
*1 A constant voltage charge is recommended, but due to a limit in charge current, it is necessary to insert a resistor to regulate charge current. Please contact us for further details. If a constant current charge is required, please contact us for more information.
*2 Value measured using AC (Altering Current) method in the fully charged state
*3 Counts of charge and discharge repetition that maintains about 50% of the minimum guaranteed capacity.
*4 Depth of Discharge



Go to top of page

CHARACTERISTICS

Click to enlarge.

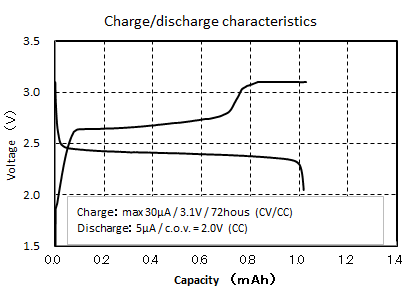

 chargedischarge chara

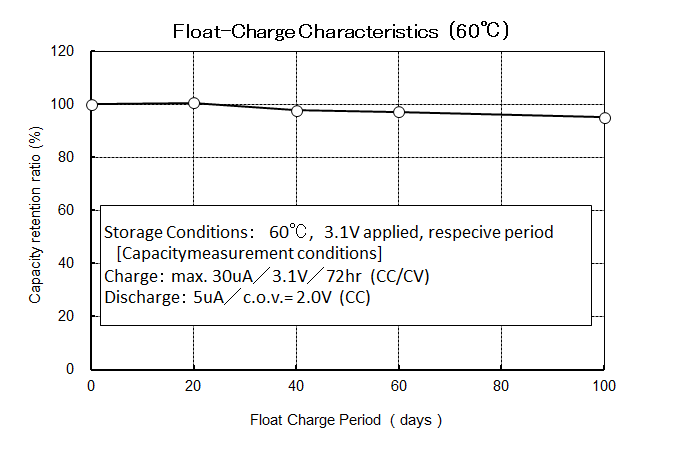

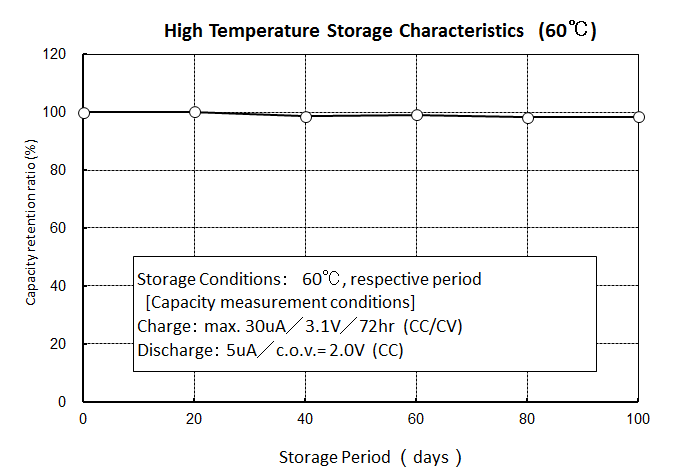

Floatcharge  2High Temp

Go to top of page

Reflow Soldering Conditions

Click to enlarge.

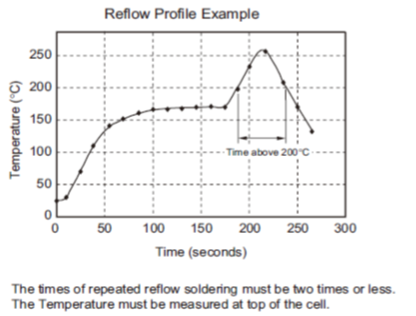

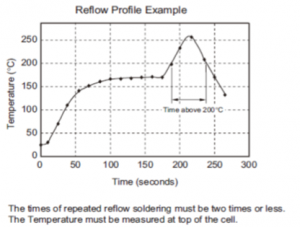

Reflow profile Recommended
