SPECIFICATIONS

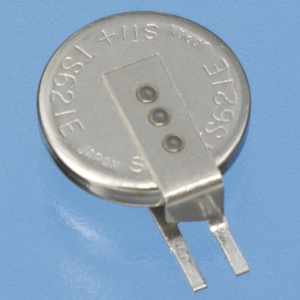

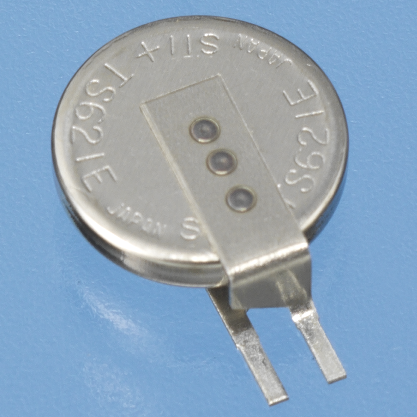

Type TS621E
Nominal Voltage(V) 1.5
Charge Voltage(V) 1.5 to 3.0
Nominal Capacity (Voltage Range V)(mAh) 1.3 (1.5 to 1.0)

2.5(2.3 to 1.0)

Internal Impedance(Ω) 50
Standard Charge Discharge Current(mA) 0.025
Cycle Life (Time)100% D.O.D(Depth of Discharge) 100
Cycle Life (Time)20% D.O.D(Depth of Discharge) 1000

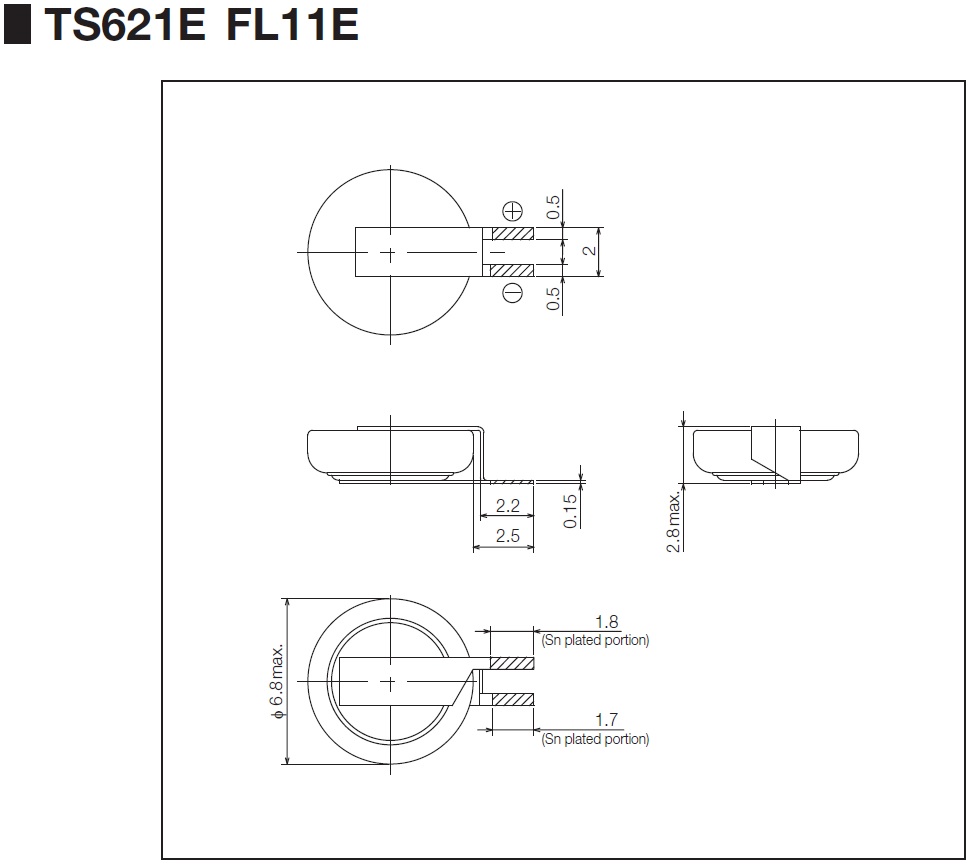

Size Diameter(mm) 6.8
Size Height(mm) 2.1
Weight(g) 0.23

Go to top of page

CHARACTERISTICS

Click to enlarge.

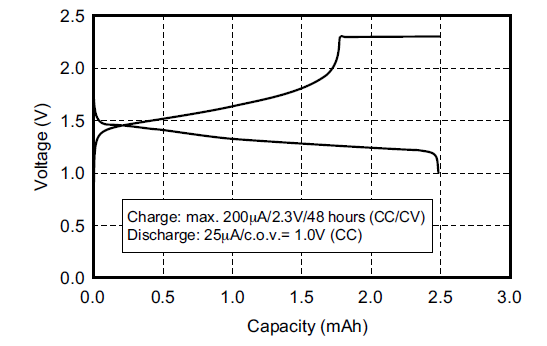

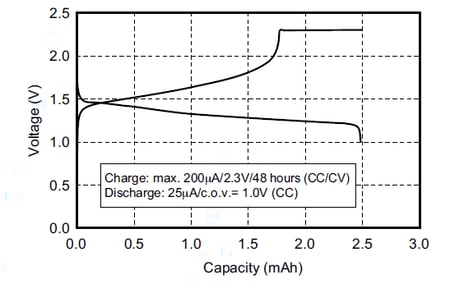

Charge/Discharge Characteristics

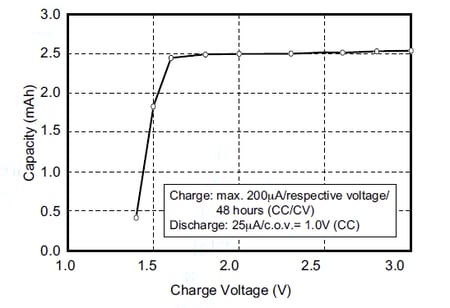

Charge Voltage Characteristics
