Standalone Printer Unit

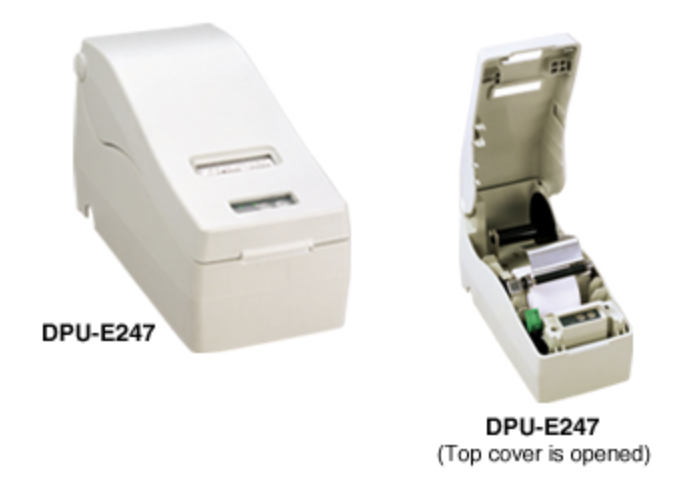

DPU-E247B DPU-E247

Standalone Printer Unit

DPU-E247

  • Max printing speed: 90mm/sec
  • For journal printing, recording
  • Built-in auto-winder unit
  • Available serial and parallel model
  • POS/ECR
  • Measuring instrument
  • Medical equipment
Model DPU-E247-10S DPU-E247-10P
*1 Excluding protrusion
Printing Method Thermal line dot printing
Number of dots/line 432
Resolution(dots/mm) 8
Paper width(mm) 58+-
Printing width(mm) 54
Speed(mm/sec)max 90
Paper path Curved
Character matrix example(H x W dots) 24 x 12, 24 x 24, 16 x 8, 16 x 16
Character size(H x W mm) 3.0 x 1.5, 3.0 x 3.0, 2.0 x 1.0, 2.0 x 2.0
Number of columns 27, 13, 36, 18
Character type Optional Font, Downloaded Character, User-defined Character, Extend Graphics Character set,
Katakana Character set, JIS 1&2 level Kanji
Barcode UPC-A/E,JAN(EAN)8/13,ITF,CODE39,
CODABAR,CODE93,CODE128
Power supply(V) Option:Specified AC adapter

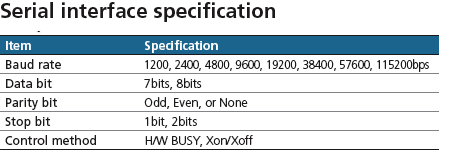

Data input method Serial 9-pins
(RS-232C)

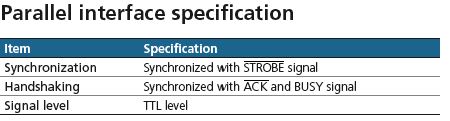

Parallel 36-pins
(IEEE 1284 Nibble mode)
Input buffer 252Bytes
Command SII standard
Operating Temperature(°C) 5 to 40
Humidity(%RH) 30 to 80 (Non condensation)
Dimensions(W x D x H mm) 120.0 x 256.1 x 145.4 *1
Mass(g) Approx.1,300
Standard FCC, CE, VCCI
Option AC adapter, AC cable
