Mobile Printer

Mobile Printer DPU-S245

  • Max printing speed: 100mm/sec
  • Interface: Bluetooth®, USB, IrDA (ver1.2) and Serial
  • Compact and light-weight
  • Easy paper operation
  • Various drivers
Measuring instrumentPDABarcode
Medical equipmentMedical equipment
DPU-S245
Model DPU-S245
Printing Method Thermal line dot printing
Number of dots/line 384
Resolution(dots/mm) 8
Paper width(mm) 58+-
Printing width(mm) 48
Speed(mm/sec)max 100
Outside diameter of paper roll (mm)max Φ38
Character matrix
(H x W dots)
24 x 12, 24 x 24, 16 x 8, 16 x 16
Character size
(H x W mm)
3.0 x 1.5, 3.0 x 3.0, 2.0 x 1.0, 2.0 x 2.0
Number of columns 24, 12, 32, 16
Type of Paper Roll paper, Label roll paper
Character type Extend graphics character set ,Katakana character set, CP1252, Optional font, Downloaded character, User-defined character, JIS 1&2 level kanji
Bar code UPC-A/E, JAN(EAN)8/13, ITF, CODE39, CODABAR, CODE128, PDF417, QR Code, MaxiCode, Data Matrix
Power supply(V) Li-lon battery, Specified AC adapter
Communication interface Bluetooth®*1, USB, IrDA(ver1.2), Serial
Input buffer 4K bytes
Command ESC/P*2 conformity
Cutting Tear bar
Operating Tmperature(°C) -10 to 50
Service life(km) 50*3
Dimensions(WxDxH mm) 83 x 130 x 45*4
Mass(g) Approx.280*5
Standard FCC, CE, VCCI, CCC*6
Option AC adapter, Battery pack, Battery charger, AC cable, USB cable, Serial cable, Carrying case
Driver Windows® XP/Vista/7/8(32bit/64bit),
Library(Windows® CE5.0/6.0, Windows® Mobile5.0/6.0)
*1 Only Bluetooth® model
*2 ESC/P™ : Registered trademark of SEIKO EPSON CORP.
*3 Use recommended thermal papers *4 Excluding protrusion
*5 including battery, excluding roll paper *6 DPU-S245-00A-E model only
Windows® is the registered trademark of Microsoft Corporation (USA).
Bluetooth® is a registered trademark of Bluetooth SIG, Inc.

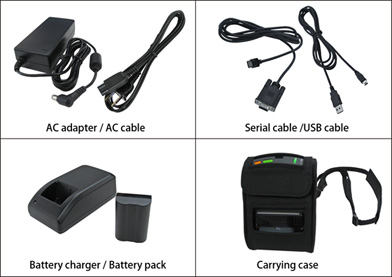

Option

Serial interface specification

Item Specification
Baud rate 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps
Data bit 7bits, 8bits
Parity bit Odd, Even, or None
Stop bit 1bit, 2bits
Control method H/W BUSY, Xon/Xoff

USB interface specification/Bluetooth interface specification/Infrared interface specification



S245 Applications
