Mobile Printer

Mobile Printer DPU-S445Watch Special Content

  • DPU-S445Max printing speed: 90mm/sec
  • Interface: Bluetooth®, USB, IrDA(ver1.2) and Serial
  • Compact and light-weight

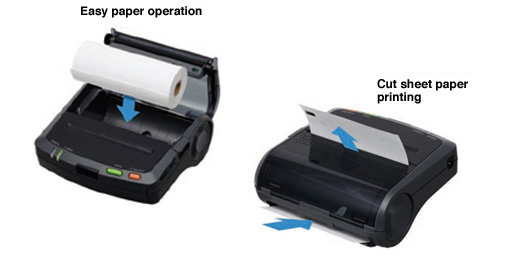

  • Easy paper operation
  • Various drivers

Measuring instrumentPDABarcode
LabelTicket printerMedical equipment



Model DPU-S445
Printing Method Thermal line dot printing
Number of dots/line 832
Resolution(dots/mm) 8
Paper width(mm) 112+-
Printing width(mm) 104
Speed(mm/sec)max 90
Outside diameter of paper roll (mm)max Φ50
Character matrix
(H x W dots)
24x12, 24x24, 16x8, 16x16
Character size
(H x W mm)
3.0 x 1.5,3.0 x 3.0,2.0 x 1.0,2.0 x 2.0
Number of columns 52, 26, 69, 34
Type of paper Roll paper, Label roll paper, Cut sheet paper
Character type Extended graphics character set ,Katakana character set,CP1252, Optional font, Downloaded character, User-defined character,
JIS 1&2 level kanji
Bar code UPC-A/E, JAN(EAN)8/13, ITF, CODE39, CODABAR, CODE128, PDF417, QR Code, MaxiCode, Data Matrix
Power supply(V) Li-lon battery, Specified AC adapter
Communication interface Bluetooth®*1, USB, IrDA(ver1.2), Serial
Input buffer 4K bytes
Command ESC/P*2 conformity
Cutting Tear bar
Operating Tmperature(°C) 0 to 50
Service life(km) 50*3
Dimensions(WxDxH mm) 145 x 135 x 58*4
Mass(g) Approx.490*5
Standard FCC, CE, VCCI, CCC*6
Option AC adapter, Battery pack, Battery charger, AC cable, USB cable, Serial cable, Carrying case
Driver Windows® XP/Vista/7/8(32bit/64bit),
Library(Windows® CE5.0/6.0, Windows® Mobile5.0/6.0)
*1Only bluetooth model
*2 ESC/P™:Registered trademark of SEIKO EPSON CORP.
*3 Use recommended thermal papers
*4 Excluding protrusion
*5 including battery, excluding roll paper
*6 DPU-S445-00A-E model only
Windows® is the registered trademark of Microsoft Corporation (USA).
Bluetooth® is a registered trademark of Bluetooth SIG, Inc.

Serial interface specification
Item Specification
Baud rate 1200,2400,4800,9600,19200,38400,57600,115200 bps
Data bit 7bits, 8bits
Parity bit Odd, Even, or None
Stop bit 1bit, 2bits
Control method H/W BUSY, Xon/Xoff


dpu-s445

USB interface specification

Infrared interface specification

Bluetooth interface specification
