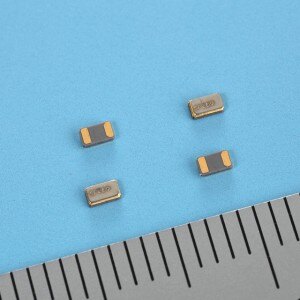

SC-20P　　32kHz Crystal Resonator R1=50kΩ Max.

FEATURES

Technical overview of an SMD crystal resonator optimized for microcontrollers with low Equivalent Series Resistance, or ESR, of 50k ohms max. It is designed for high-density surface mounting and offers excellent shock and heat resistance. The internal crystal element is processed using high-reliability photo-lithographic technology, and the product is Pb-free and compliant with the EU RoHS directive

Datasheet
▶︎ Suitable for Microcontroller with Low ESR (R1=50kΩ max.).
▶︎Small 2012 size (2.0 x 1.2 x 0.6 mm) package
▶︎ SMD type suitable for high density surface mounting.
▶︎ Excellent shock and heat resistance.
▶︎ Pb-free.
▶︎ Complies with EU RoHS directive
▶︎ Built-in crystal resonator processed by high reliable
photo-lithographic technology.

SPECIFICATIONS

Item Symbol Specifications
Nominal Frequency f_nom 32.768kHz
Frequency Tolerance f_tol ±20 x 10-6



※Please contact us for inquiries regarding available tolerance.
Turnover Temperature Ti +25±5ºC
Parabolic Coefficient β (−0.030±10%) x 10-6/ºC2
Load Capacitance CL 6.0pF、7.0pF、9.0pF、12.5pF



※Please contact us for inquiries regarding available CL.
Motional Resistance(ESR) R1 50kΩ Max.（-40℃～+85℃）
Absolute Maximum Drive Level DLmax. 1.0μW Max.
Drive Level DL 0.1μW typ.
Shunt Capacitance C 0 1.5pF typ.
Frequency Ageing f_age ±5 x 10-6/Year
Operating Temperature T_use -40 〜 +85ºC
Storage Temperature T_stg -55 〜 +125ºC

APPLICATIONS

  • Module
  • Note PC, Tablet PC,　Mobile Device
  • Sub-clock function for a variety of MicroControllers
  • Consumer electronics products for saving standby energy consumption

DRAWING

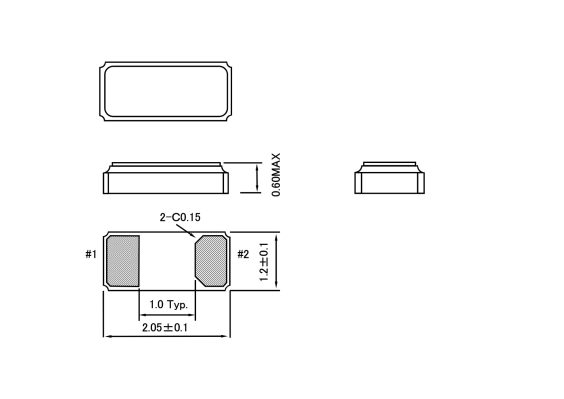

External dimension drawing of a low ESR crystal resonator showing top, side, and bottom views in mm. It highlights the package size and terminal layout for high-density SMD mounting
