SPRON is an SII brand name coined from SPRING MICRON.

OUTLINE

“SPRON” is a special metal (Co-Ni alloy) developed for mechanical watch springs, through collaboration with the Institute for Materials Research, Tohoku University.
It has the excellent characteristics of high elasticity, durability, corrosion resistance, and heat resistance allowing to be used in wide-range of fields, including medical materials, small precision springs, as well as springs for watches.

file_PRODUCT_MASTER_1894_GRAPHIC01
file_PRODUCT_MASTER_50121_GRAPHIC02

FEATURES

SPRON 510 is a strain age-hardening type Co-Ni-Cr-Mo alloy with material characteristics that are more advanced than SPRON 100.
It is non-magnetic and features ultra high elasticity and high mechanical strength, as well as high durability and heat resistance.

APPLICATIONS

▶︎ Diaphragms and pipes for mass flow controllers
▶︎ Parts for pressure sensors (diaphragms and pipes)
▶︎ Corrosion-resistant, precision processed parts
▶︎ Precision parts for medical equipment
▶︎ Precision springs (coils, torsion springs, flat springs, disc springs)


BASIC CHARACTERISTICS

Tensile strength ~2940MPa (~300kg/mm2)
Stiffness ~5684MPa (~580kg/mm2)
Elongation 3.00%
Hardness Hv.~ 800
Density 8.5 ~ 8.7g/cm3
Young’s modulus 216 ~ 225GPa (22~23X103kg/mm2)
Modulus of rigidity 83.3GPa (8.5X103kg/mm2)
Linear expansion coefficient 12 ~13X10-6/°C (20 ~ 50°C)
Electrical resistivity 98 ~ 100µΩ-cm
Intensity of magnetization 0 (5KOe)

(Wire drawriing material: cold processing + age treatment)

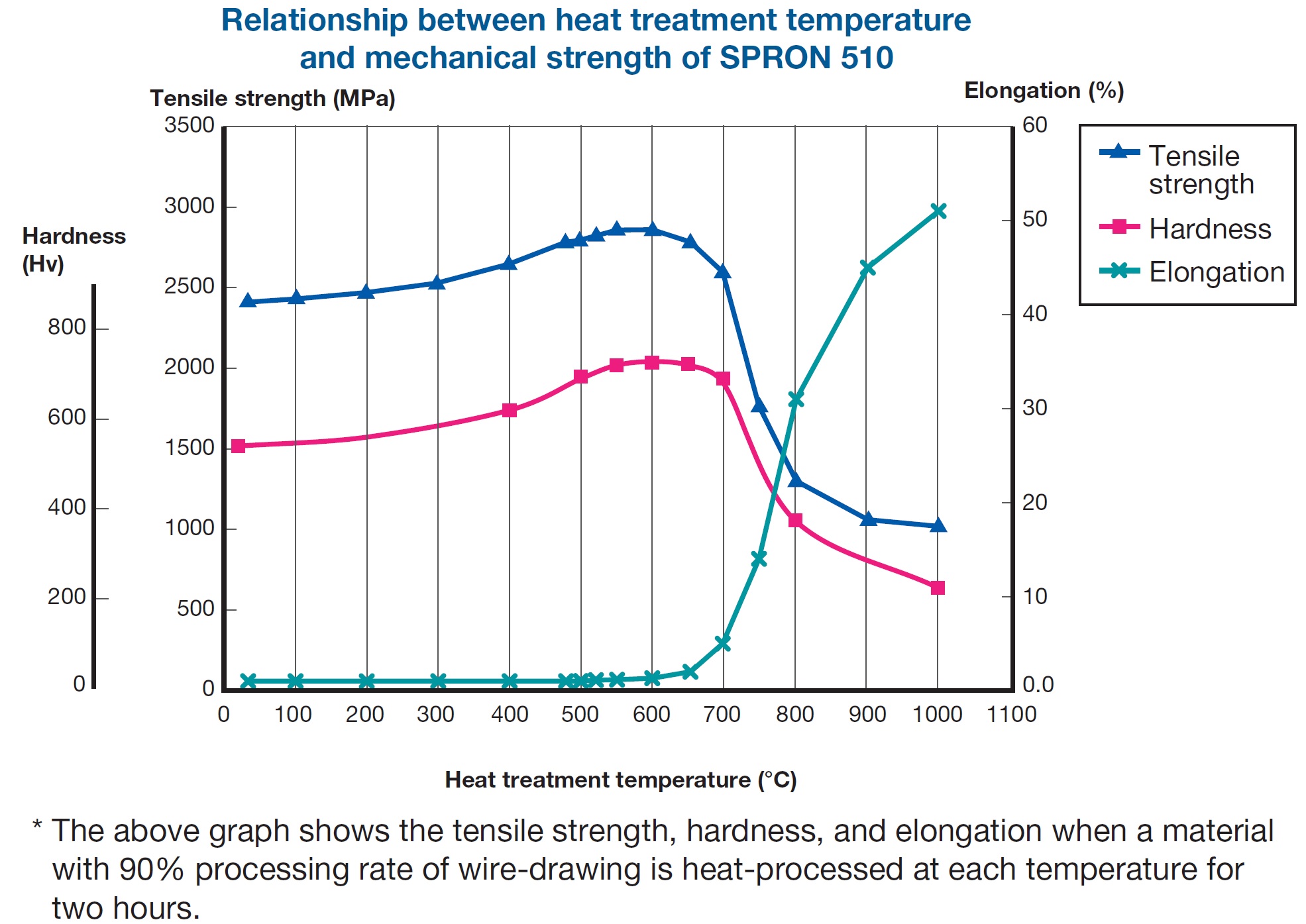

SPRON-510-Mecanical-Kyoudo-1536x1087

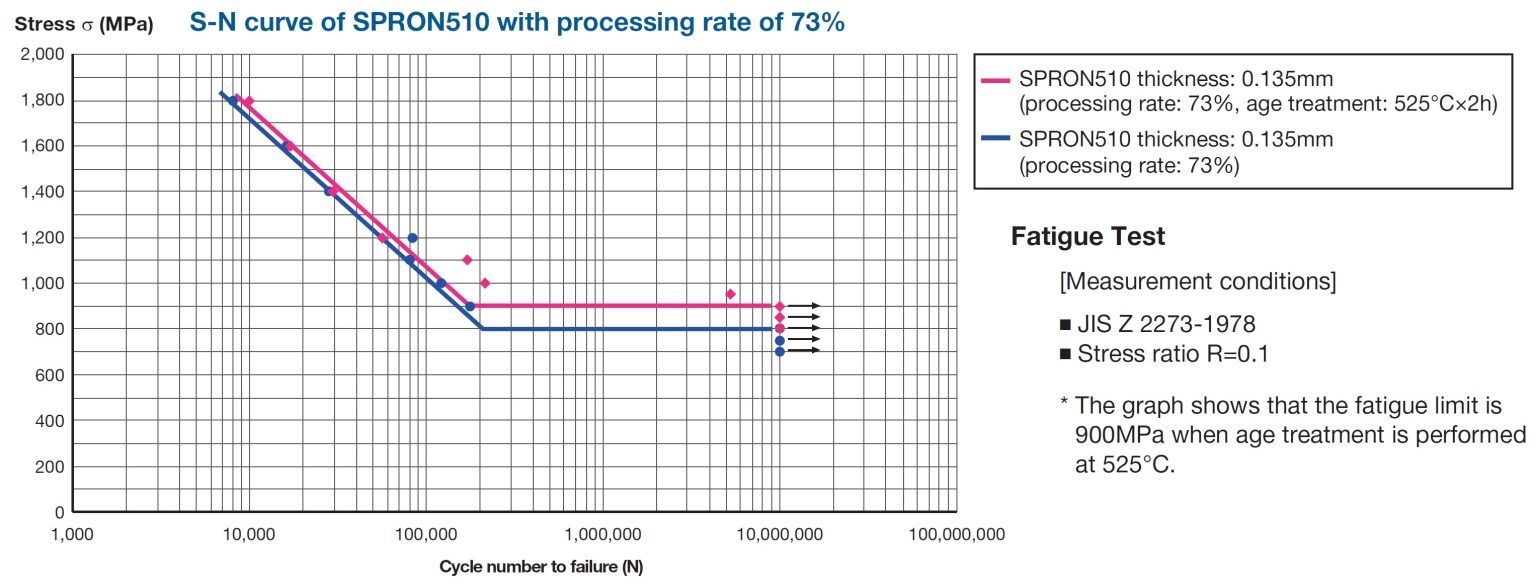

SPRON-510-S-N-Curve-1536x584
