SPECIFICATIONS

Type MS614SE
Nominal Voltage(V) 3
Charge Voltage (Standard Charge Voltage)(V) 2.8 to 3.3(3.1)
Nominal Capacity(mAh) 3.4
Internal Impedance(Ω) 80
Standard Discharge Current(mA) 0.015
Maximum Discharge Current (Continuous)(mA) 0.25
Cycle Life (Time)100% D.O.D(Depth of Discharge) 100
Cycle Life (Time)20% D.O.D(Depth of Discharge) 1000

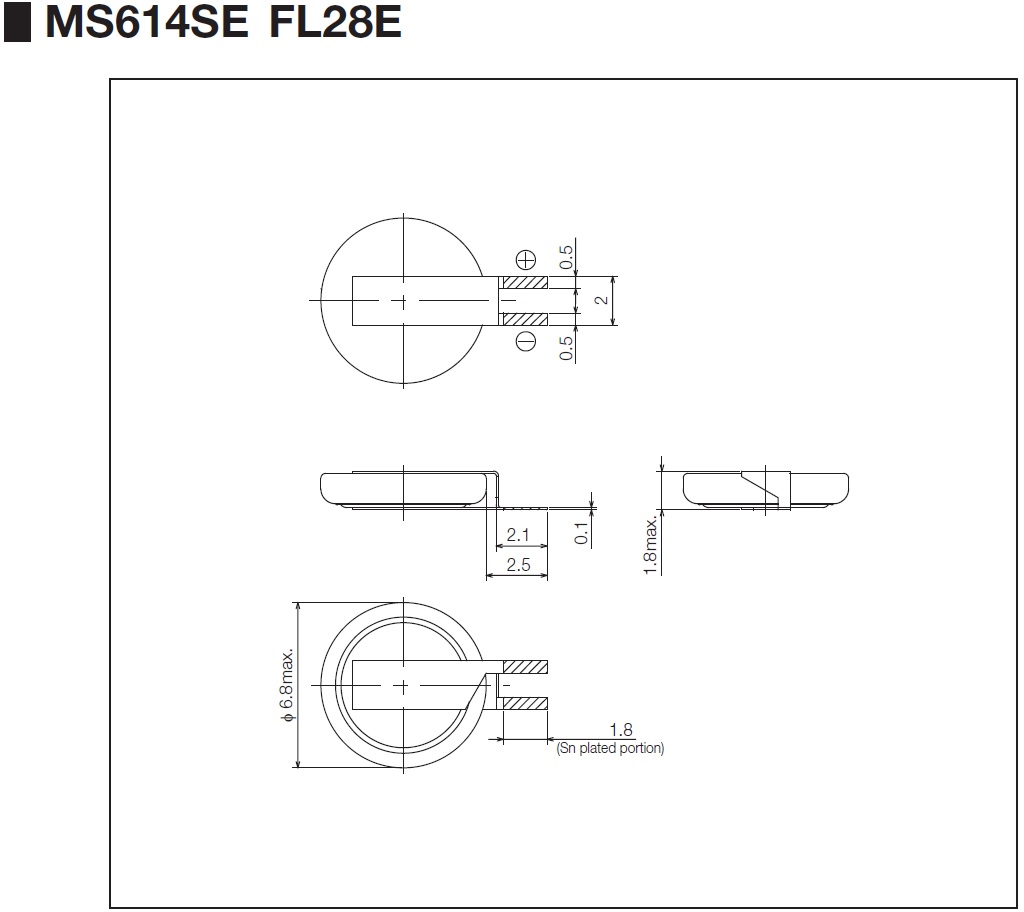

Size Diameter(mm) 6.8
Size Height(mm) 1.4
Weight(g) 0.17

MS614SE

Go to top of page

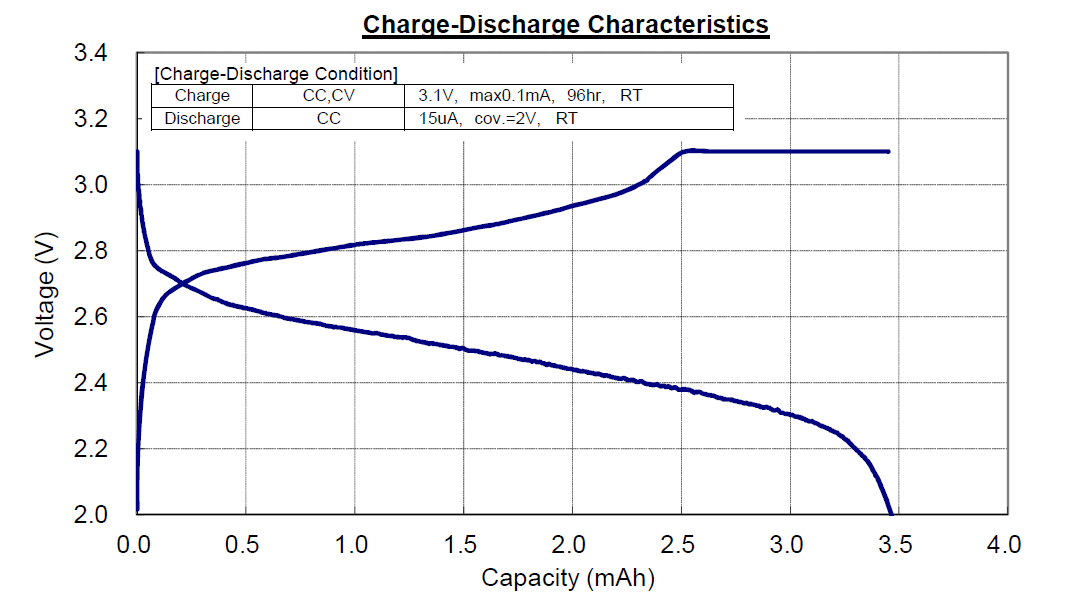

CHARACTERISTICS

Click to enlarge.
