MICRO ENERGY

微型能源

MS Lithium Rechargeable Battery MS414GE

SPECIFICATIONS

Type MS414GE
Nominal Voltage(V) 3
Charge Voltage (Standard Charge Voltage)(V) 2.8 to 3.3(3.1)
Nominal Capacity(mAh) 2.0
Internal Impedance(Ω) 100
Standard Discharge Current(mA) 0.010
Maximum Discharge Current (Continuous)(mA) 0.05
Cycle Life (Time)100% D.O.D(Depth of Discharge) 50
Cycle Life (Time)20% D.O.D(Depth of Discharge) 500
Size Diameter(mm) 4.8
Size Height(mm) 1.4
Weight(g) 0.08
file_EXTENDED_PRDCT_SPEC_365_PHOTO

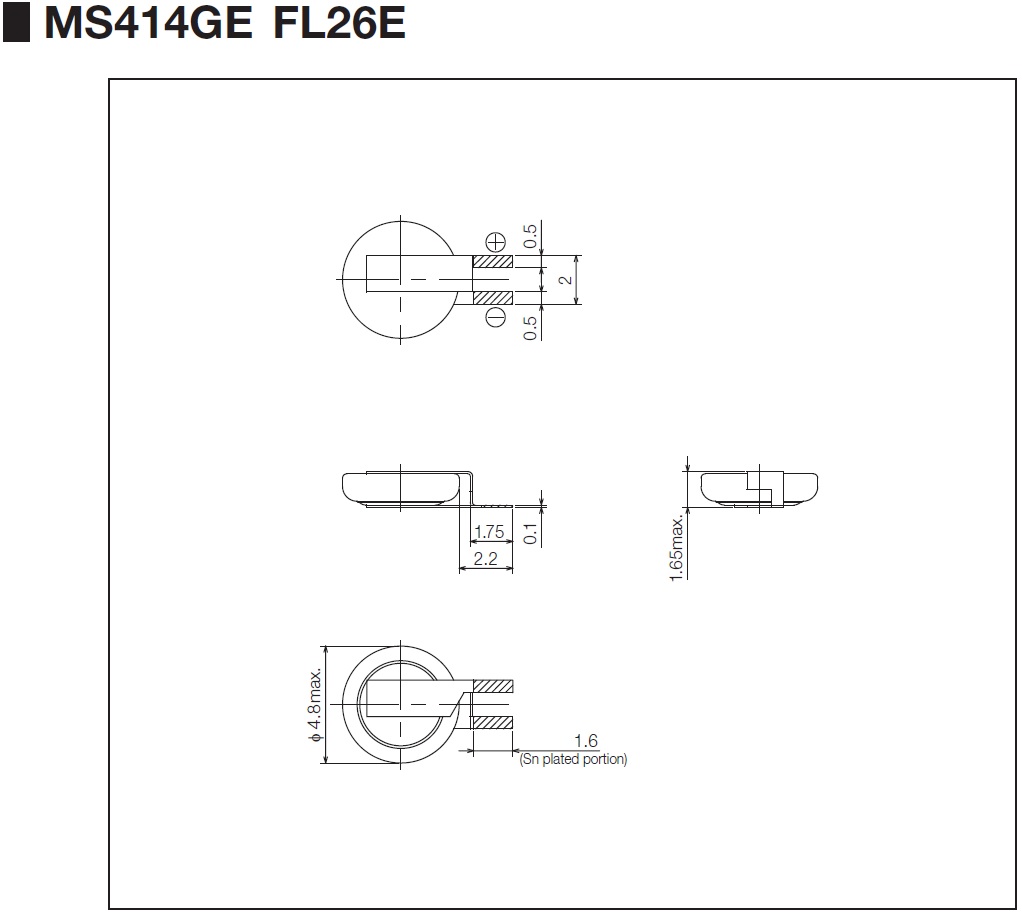

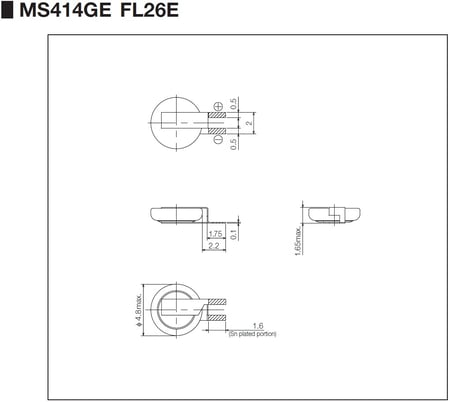

MS414GE FL26E
MS414GE is not reflowable. Please mount them on PCB by hand soldering.

Terminals

Zu-E_2023_MS414GE_FL26E_

Click to enlarge.

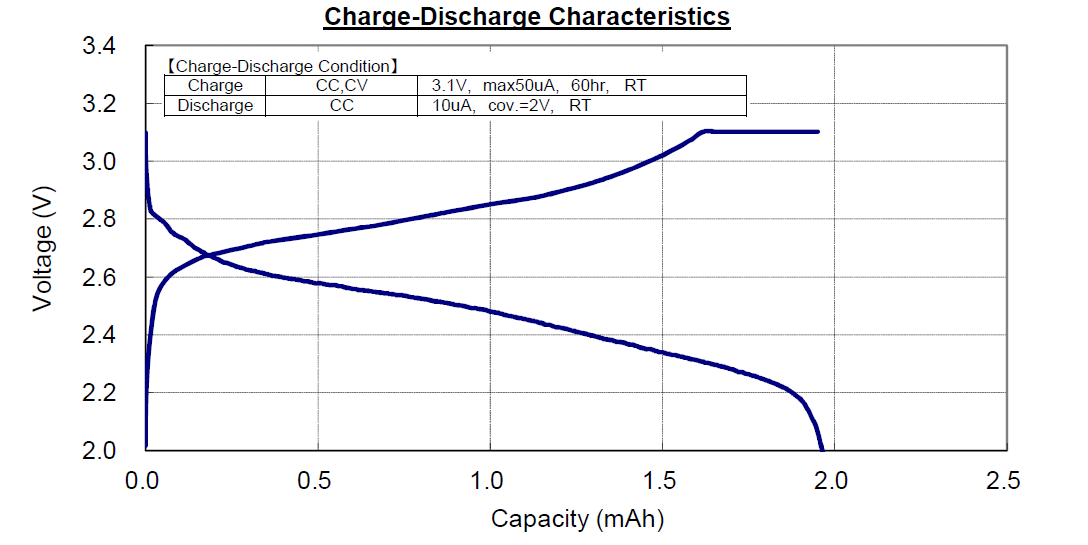

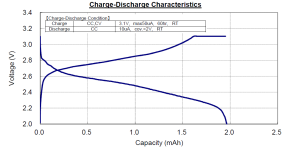

CHARACTERISTICS

Click to enlarge.

MS414GE-ChargeDischarge20230320-E-1024x513
