MS621R (Reflowable)
SPECIFICATIONS
| Type | MS621R |
|---|---|
| Operating Temperature Range (℃) | -20～+60 |
| Nominal Voltage(V) | 3 |
| Charge Voltage (Standard Charge Voltage)(V) | 2.8 to 3.3(3.1) |
| Nominal Capacity(mAh) | 3.0 |
| Internal Impedance(Ω) | 400 |
| Standard Discharge Current(mA) | 0.010 |
| Maximum Discharge Current (Continuous)(mA) | 0.025 |
| Size Diameter(mm) | 6.8 |
| Size Height(mm) | 2.1 |
| Weight(g) | 0.24 |
Click to enlarge.

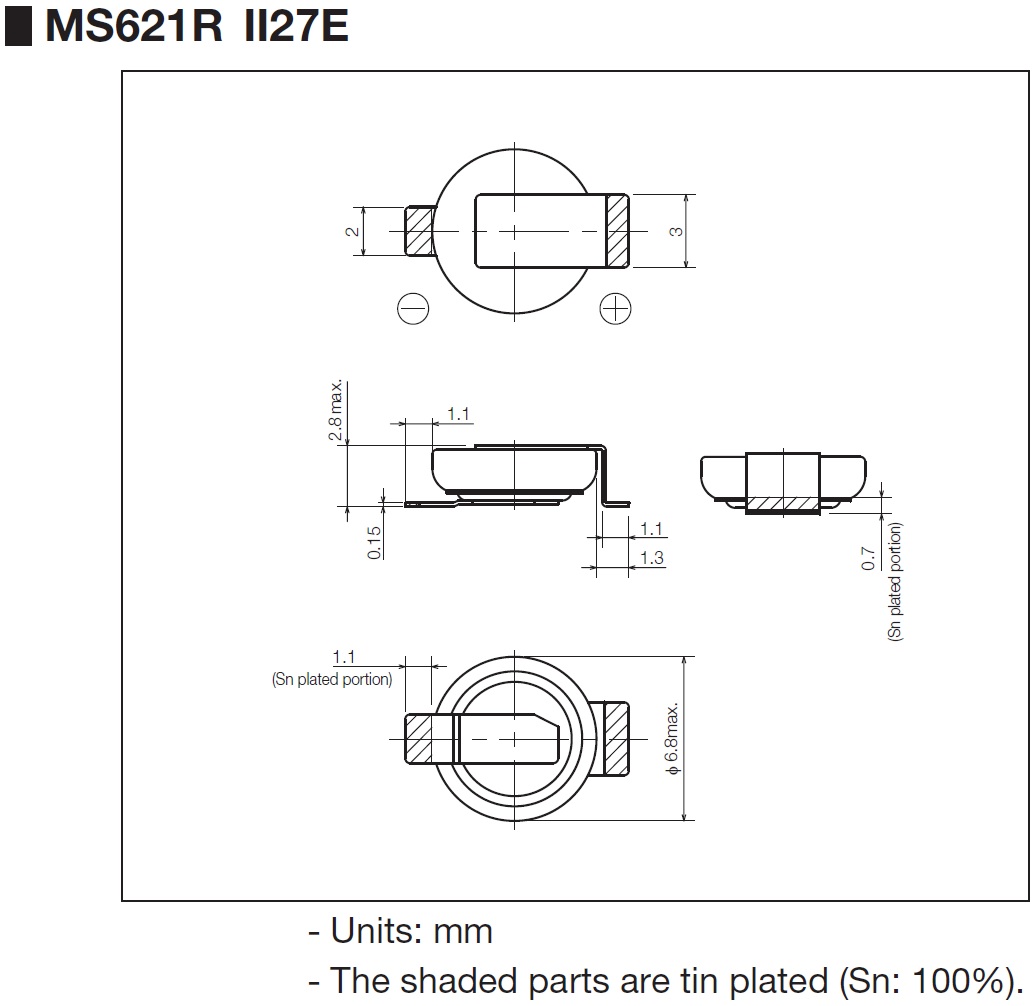

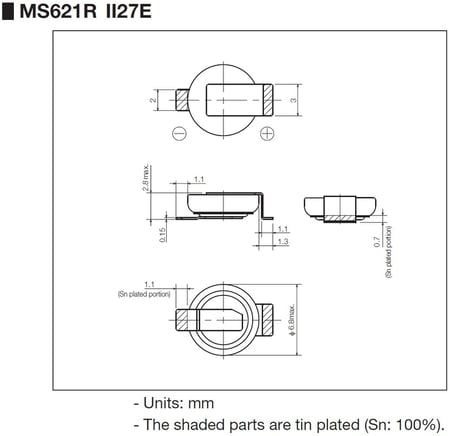

Terminals
Click to enlarge.
