SPECIFICATIONS

Type MS518SE
Nominal Voltage(V) 3
Charge Voltage (Standard Charge Voltage)(V) 2.8 to 3.3(3.1)
Nominal Capacity(mAh) 3.4
Internal Impedance(Ω) 60
Standard Charge Discharge Current(mA) 0.010
Maximum Discharge Current (Continuous)(mA) 0.15
Cycle Life (Time)100% D.O.D(Depth of Discharge) 100
Cycle Life (Time)20% D.O.D(Depth of Discharge) 1000
Size Diameter(mm) 5.8
Size Height(mm) 1.8
Weight(g) 0.13

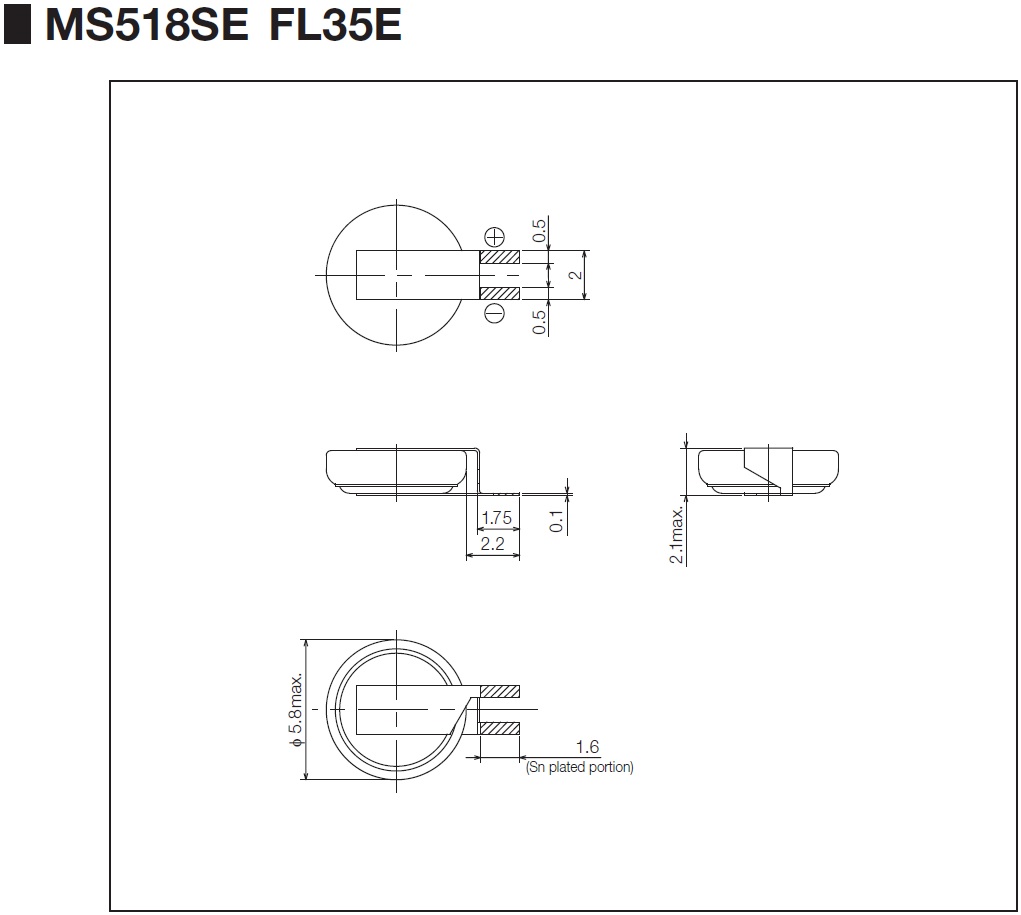

MS518SE

Go to top of page

CHARACTERISTICS

Click to enlarge.

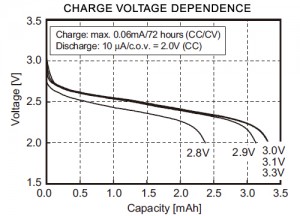

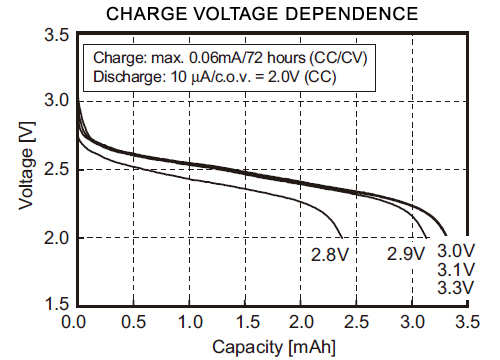

Charge Voltage Dependence

Charge Voltage Dependence

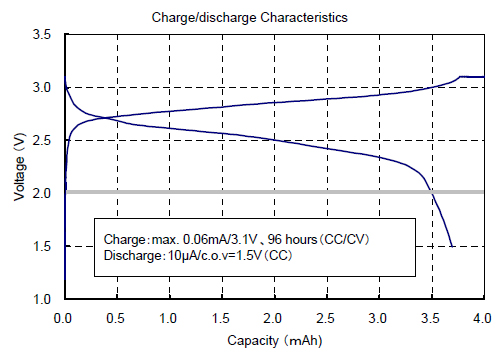

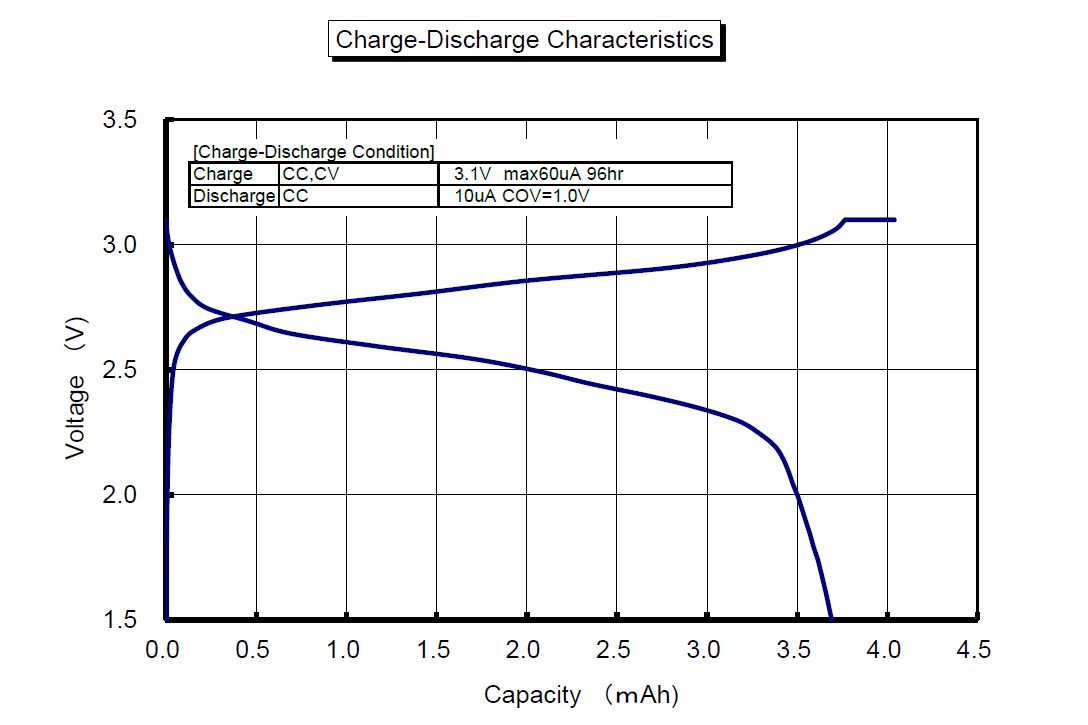

Charge / Discharge Characteristics

Charge / Discharge Characteristics

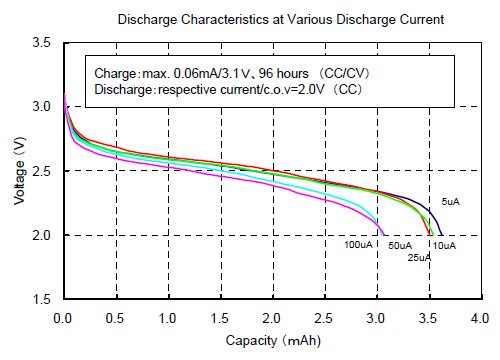

Discharge Characteristics at Various Discharge Current

Discharge Characteristics at Various Discharge Current

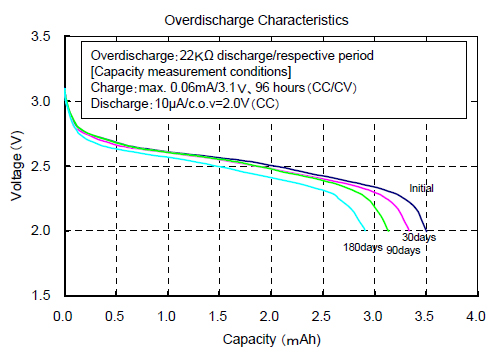

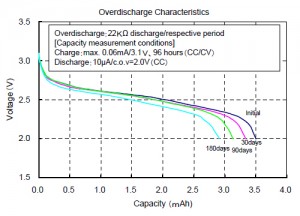

Overdischarge Characteristics

Overdischarge Characteristics

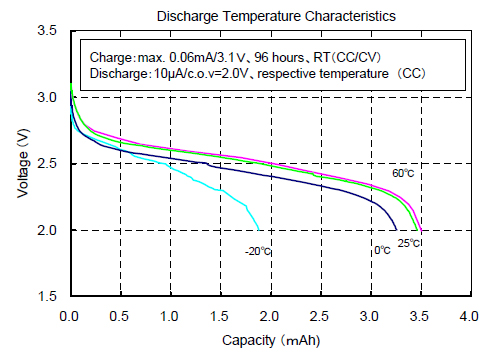

Discharge Temperature Characteristics

Discharge Temperature Characteristics

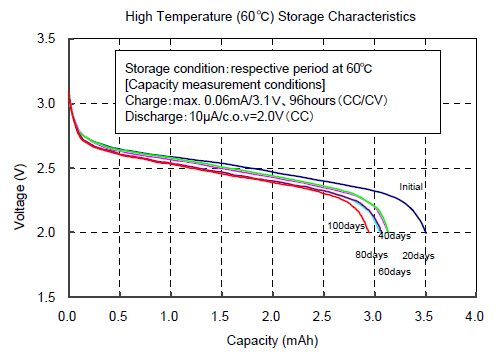

High Temperature (60℃) Storage Characteristics

High Temperature (60℃) Storage Characteristics

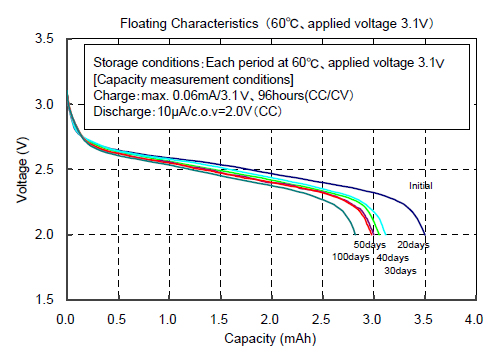

Floating Characteristics (60℃, applied voltage 3.1V)

Floating Characteristics (60℃, applied voltage 3.1V)
