SPECIFICATIONS

Type MS621T
Operating Temperature Range (℃) -40~+85
Nominal Voltage(V) 3
Charge Voltage (Standard Charge Voltage)(V) 2.8 to 3.3(3.1)
Nominal Capacity(mAh) 3.0
Internal Impedance(Ω) 80
Standard Charge Discharge Current(mA) 0.015
Maximum Discharge Current (Continuous)(mA) 0.1
Size Diameter(mm) 6.8
Size Height(mm) 2.1
Weight(g) 0.23

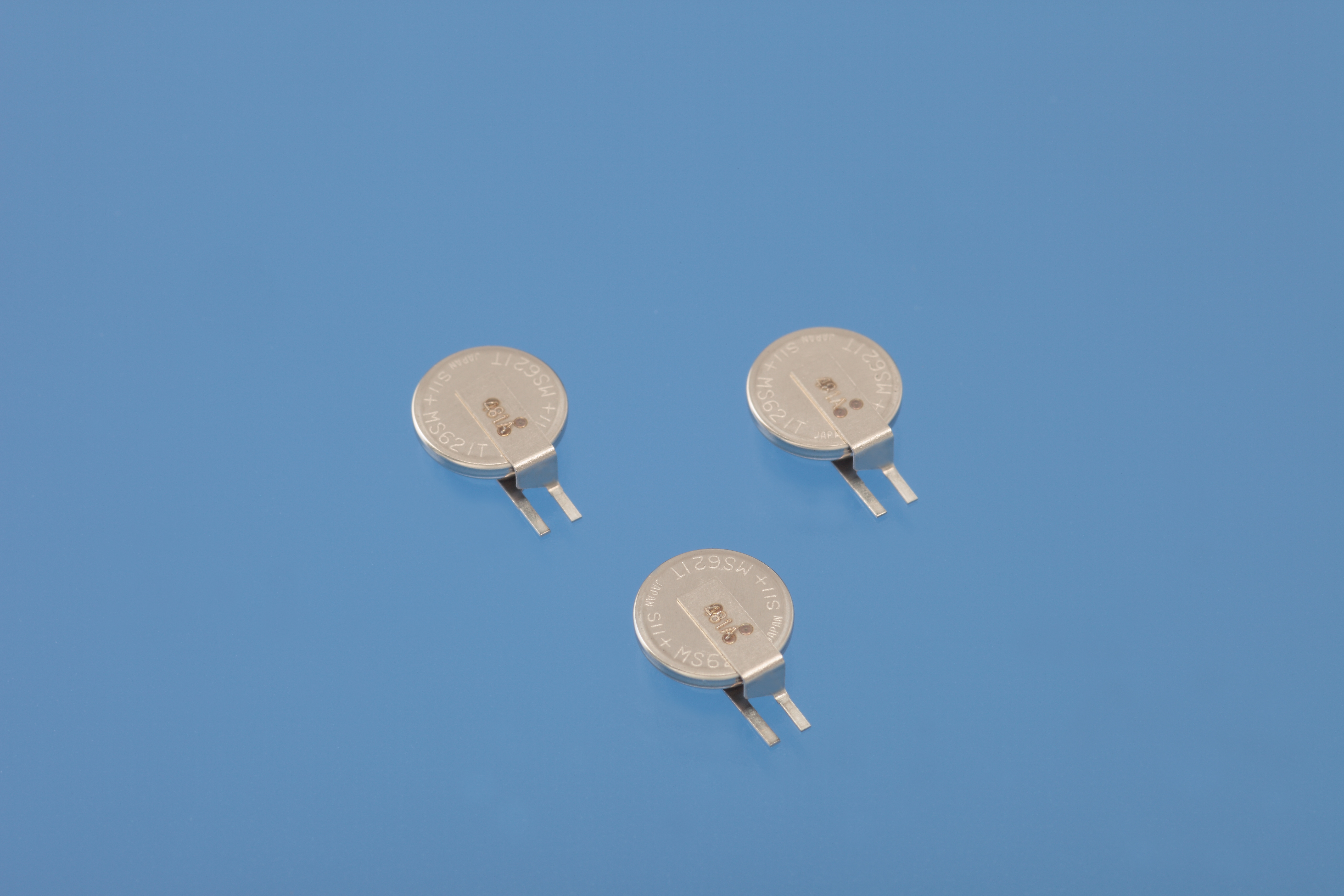

OFR_002_MS621T

Go to top of page

CHARACTERISTICS

Click to enlarge.

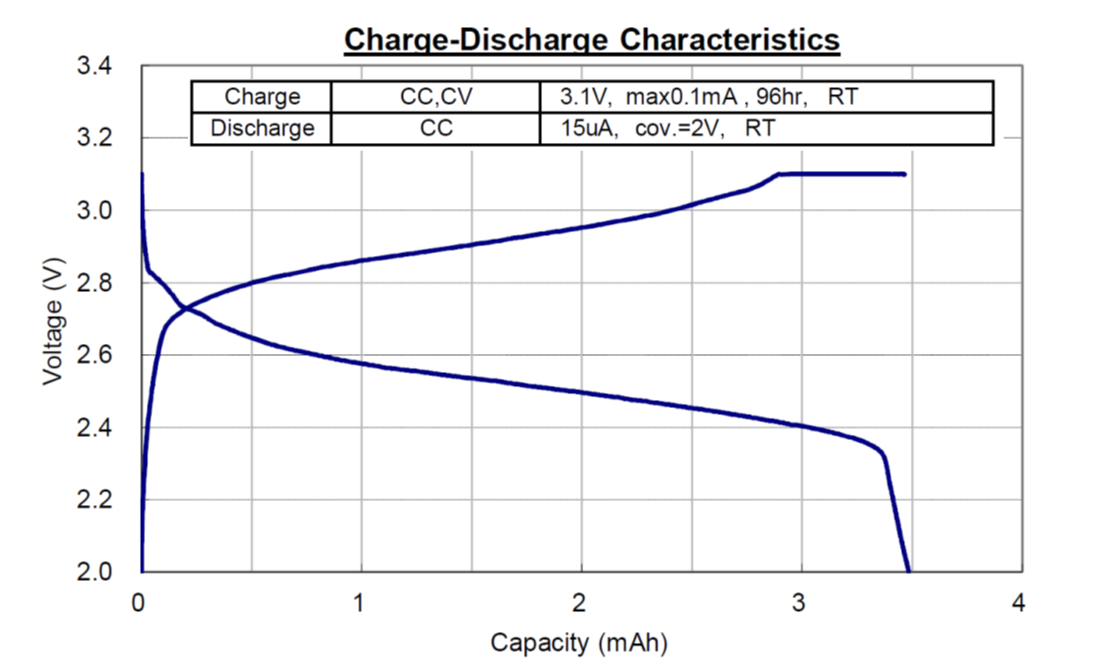

Charge-Discharge Characteristics

Charge-Dicharge_MS621T

【 Charge-Discharge Condition】

 Charge CC,CV 3.1V,  max100uA , 96hr
Discharge CC 15uA,  COV=2.0V

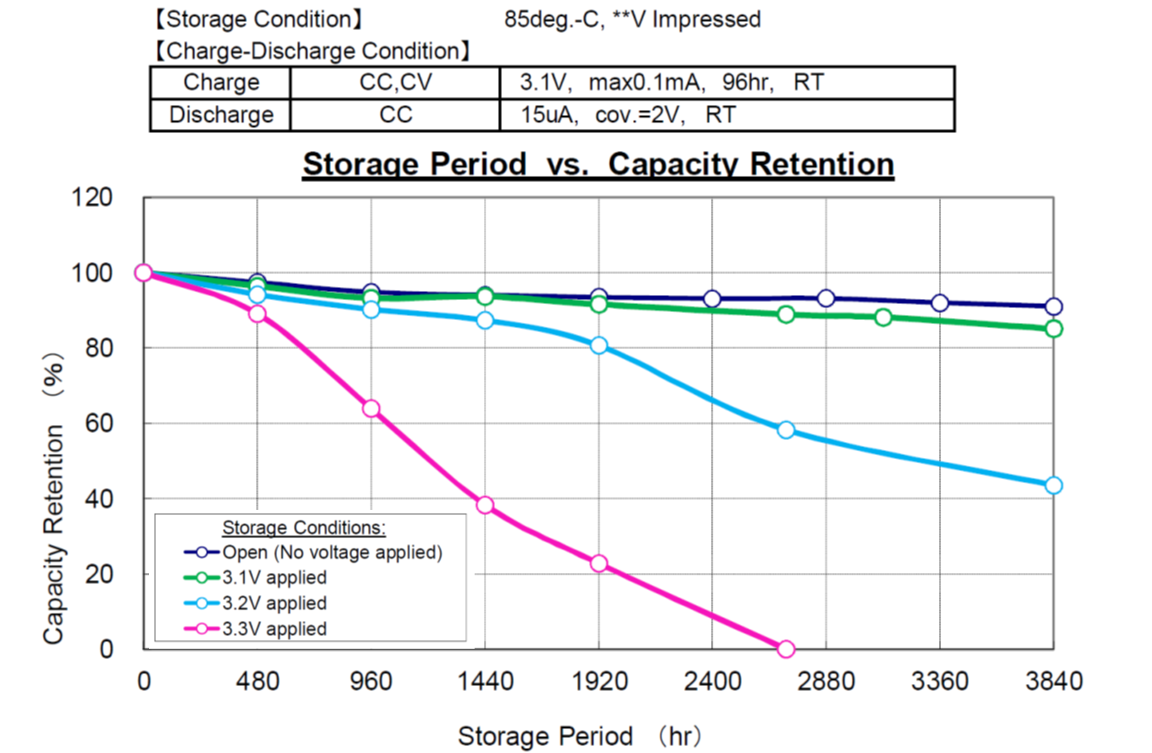

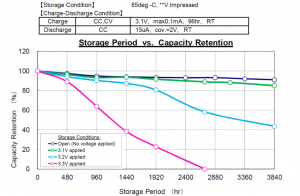

High Temperature Characteristics

High Temp_MS621T



【 Storage Condition 】 85deg.-C, **V Impressed

【 Charge-Discharge Condition 】

Charge CC,CV  3.1V, max100uA, 96hr,   RT
Discharge CC  15uA, cov=2.0V,   RT
