SPECIFICATIONS

Type MS920T
Operating Temperature Range (℃) -40~+85
Nominal Voltage(V) 3
Charge Voltage (Standard Charge Voltage)(V) 2.8 to 3.3(3.1)
Nominal Capacity(mAh) 6.5
Internal Impedance(Ω) 60
Standard Discharge Current(mA) 0.025
Maximum Discharge Current (Continuous)(mA) 0.40

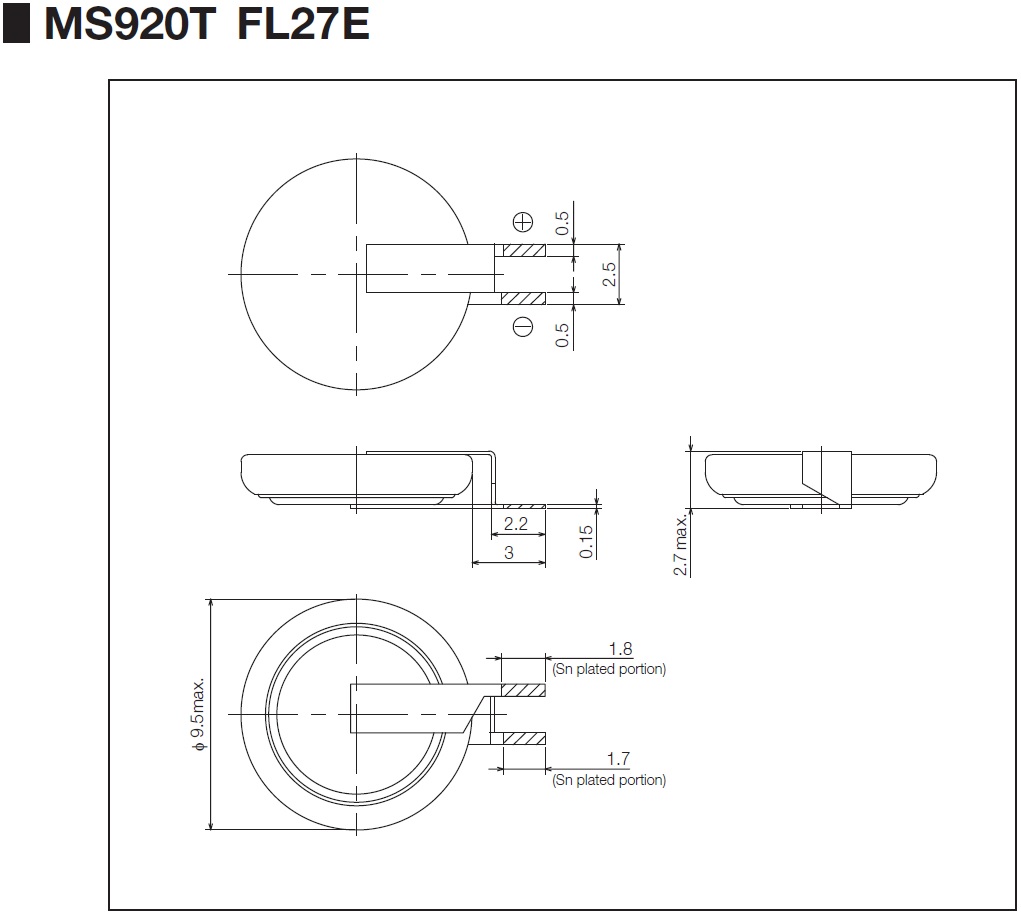

Size Diameter(mm) 9.5
Size Height(mm) 2.0
Weight(g) 0.45

MS920T is not reflowable. Please mount them on PCB by hand soldering.

Go to top of page

CHARACTERISTICS

Click to enlarge.

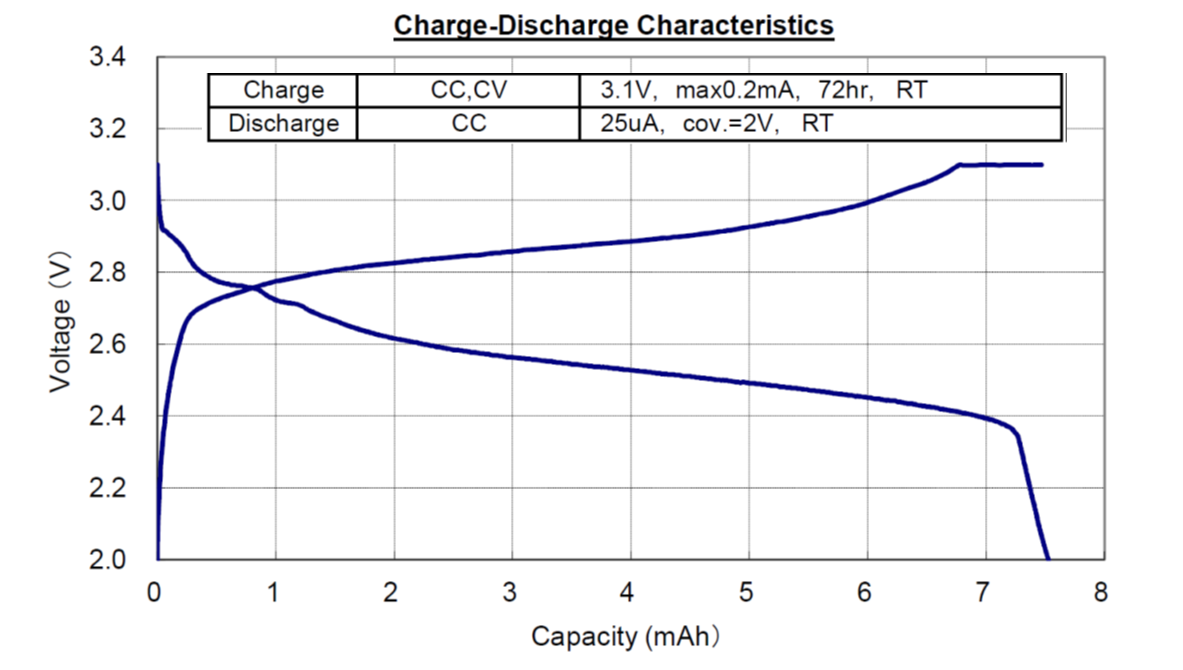

Charge-Discharge Characteristics

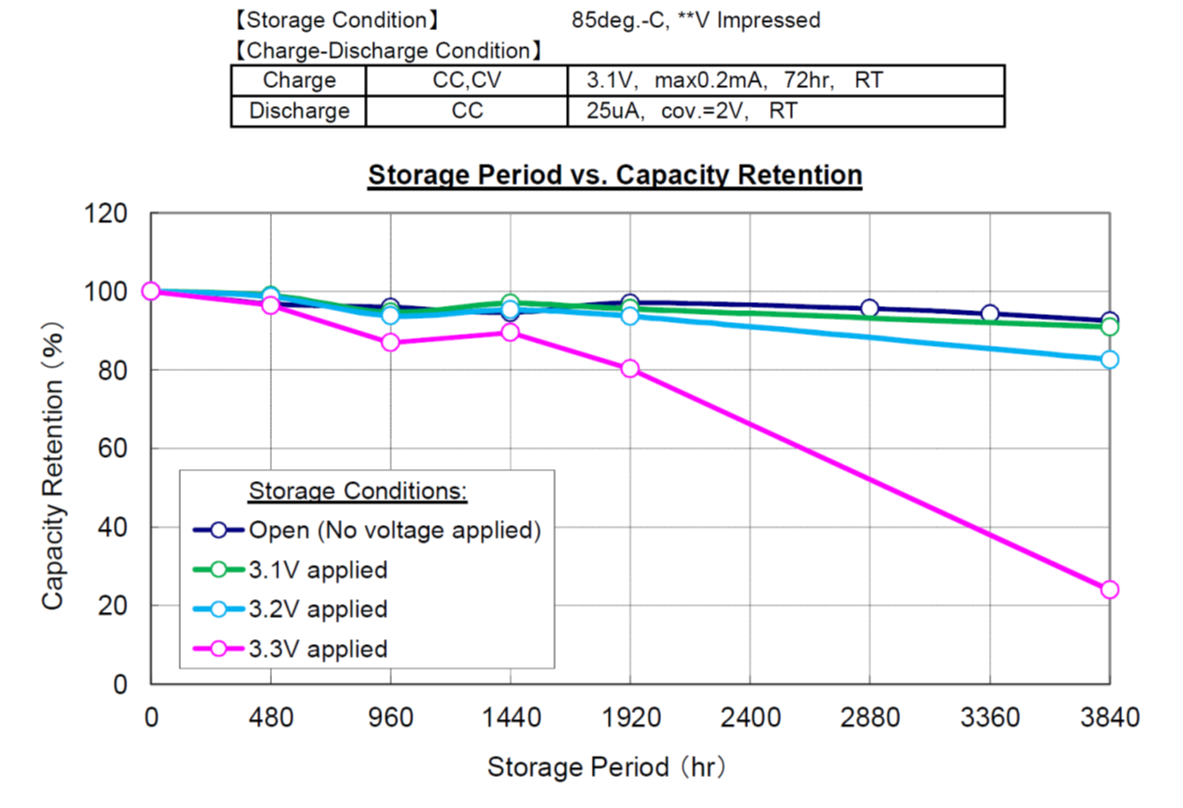

High Temperature Characteristics
