OUTLINE

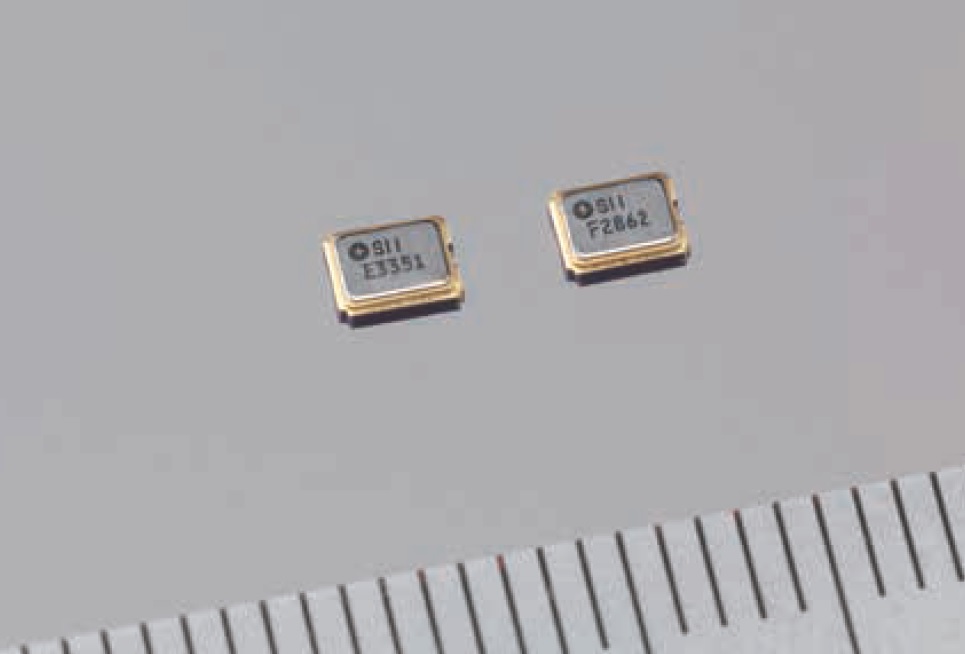

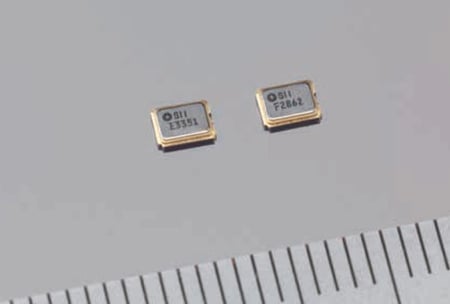

The chip-type Electric Double Layer Capacitor (EDLC), “CPM3225A” is the world smallest-class size (3.2 x 2.5 x 0.9mm) with large capacity 11.5mF, low internal impedance 80 Ω.
The unique ceramic packaging with superior air-tightness is used. As a result, it offers leakage resistance and humidity resistance.
CPM3225A is suitable for power source device in the growing market of wireless sensor network systems, etc.



Go to top of page

FEATURES

    1. Reflowable

    2. Height less than 1mm

     3. Long life span, high reliability

     4. Small size, large capacity

Go to top of page

APPLICATIONS

1. Power source or Electric storage for Wireless Sensor Network, RFID tag, RF remote control for digital home electrical appliance
2. Power source or Electric storage for Contactless IC card, multi-functional IC card

Go to top of page

SPECIFICATIONS

Type CPM3225A
Max. Use Voltage(V) 2.6
Capacitance(F) 0.0115
Internal Impedance(Ω) 80

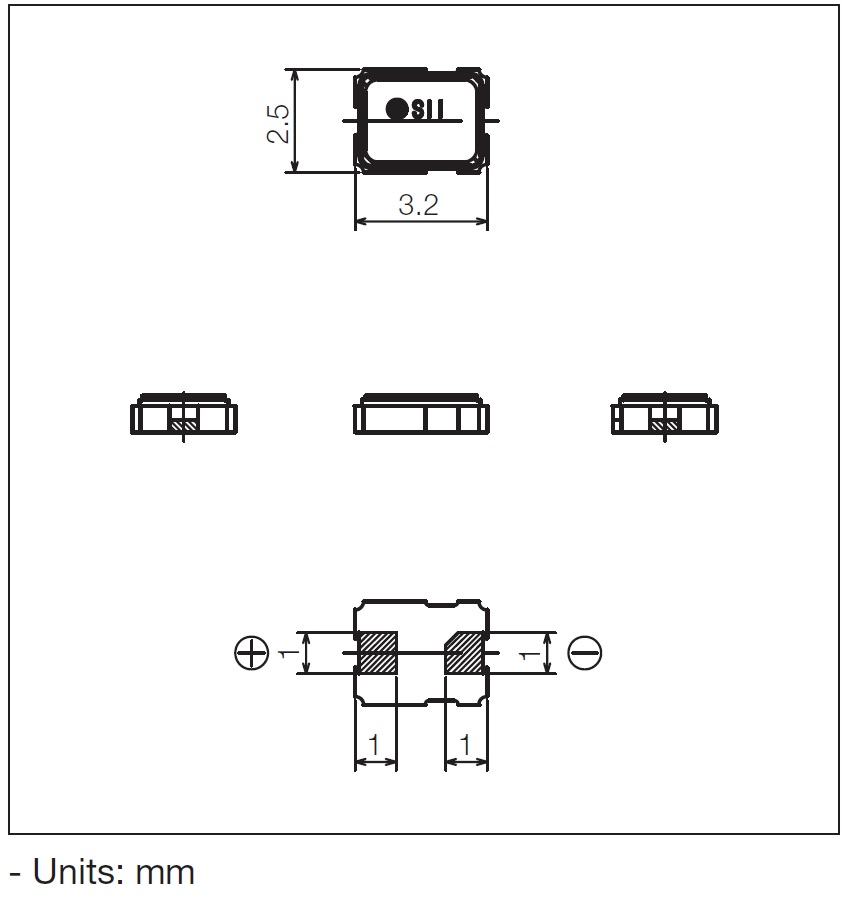

Size L x W x H(mm) 3.2 x 2.5 x 0.9
Weight(g) 0.024

Go to top of page

 CHARACTERISTICS

Under Construction
