SPECIFICATIONS

Type MS920SE
Nominal Voltage(V) 3
Charge Voltage (Standard Charge Voltage)(V) 2.8 to 3.3(3.1)
Nominal Capacity(mAh) 11.0
Internal Impedance(Ω) 35
Standard Charge Discharge Current(mA) 0.050
Maximum Discharge Current (Continuous)(mA) 0.80
Cycle Life (Time)100% D.O.D(Depth of Discharge) 100
Cycle Life (Time)20% D.O.D(Depth of Discharge) 1000
Size Diameter(mm) 9.5
Size Height(mm) 2.1
Weight(g) 0.47
MS920S

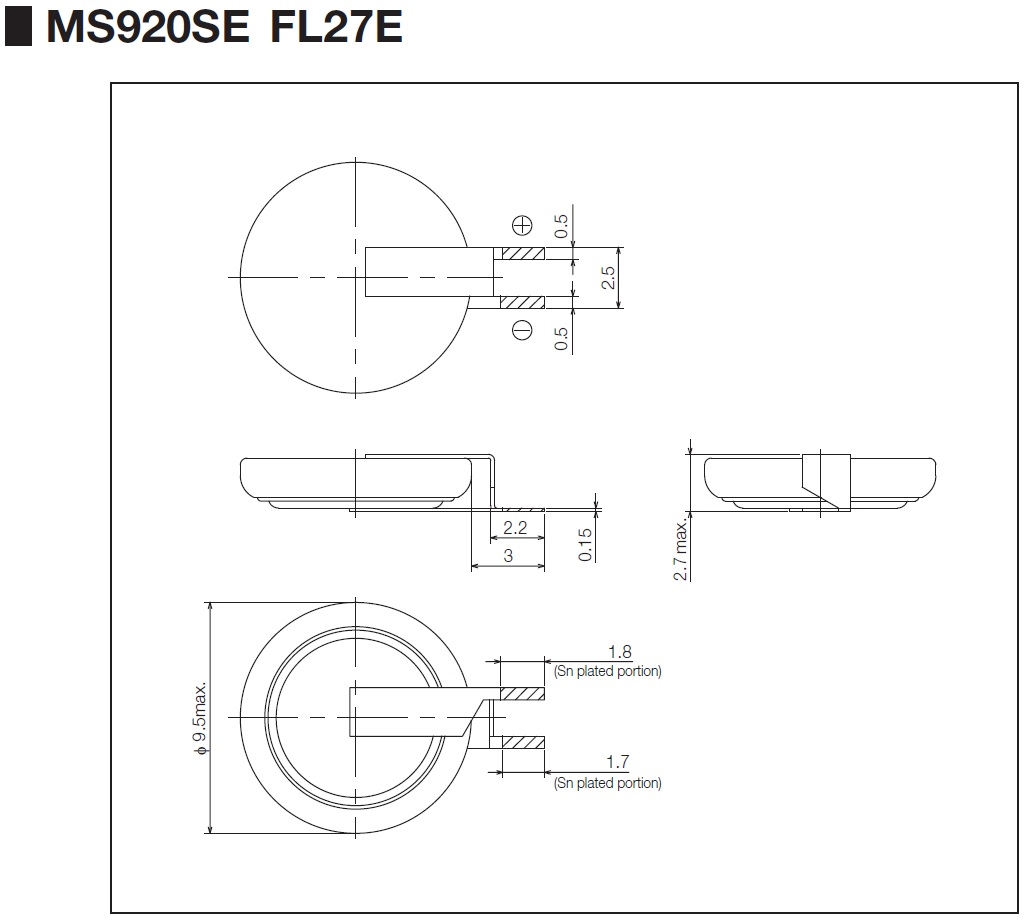

MS920SE FL27E

Go to top of page

CHARACTERISTICS

Click to enlarge.

Charge Voltage Dependence

Charge Voltage Dependence

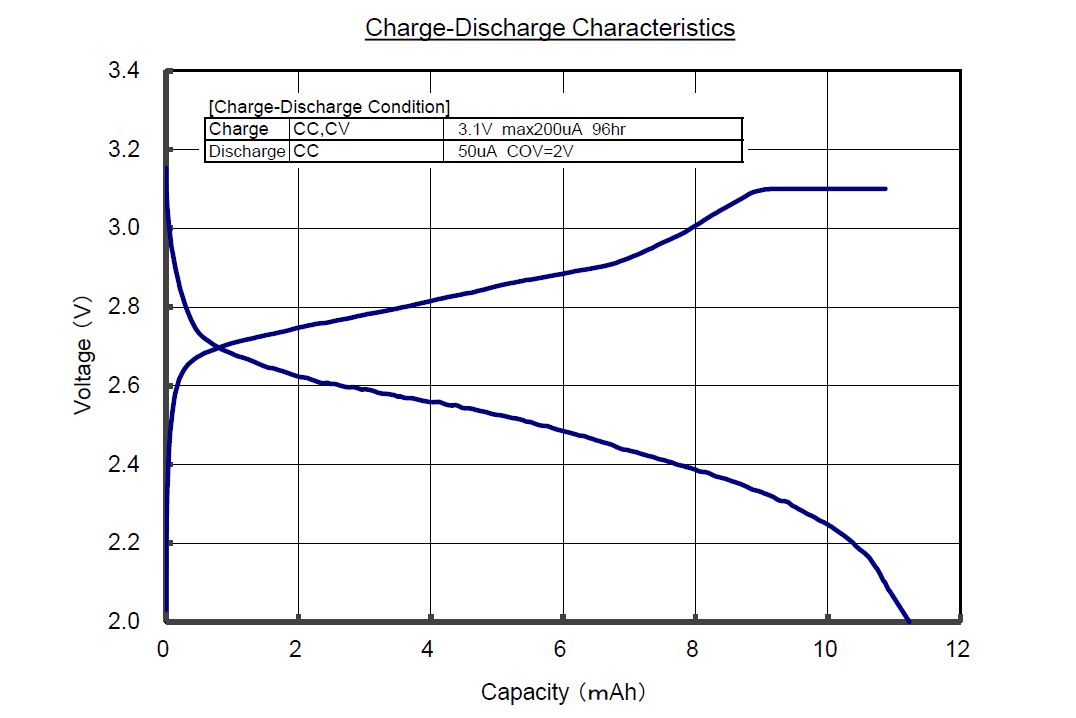

Charge / Discharge Characteristics

Charge / Discharge Characteristics

Discharge Load Characteristics

Discharge Load Characteristics

Overdischarge Characteristics

Overdischarge Characteristics

Discharge Temperature Characteristics

Discharge Temperature Characteristics

High Temperature (60℃) Storage Characteristics

High Temperature (60℃) Storage Characteristics

Floating Characteristics (60℃, applied voltage 3.1V)

Floating Characteristics (60℃, applied voltage 3.1V)
