SCX Series (SC-32L) SMD Type Quartz Crystal
FEATURES
▶︎ R1=40kΩmax.
▶︎ Ultra thin type (0.75mm)
▶︎ Suitable for high density surface mounting
▶︎ Excellent shock and heat resistance.
▶︎ Complete Pb-free
▶︎ A crystal resonator processed by high reliable photolithographic technology inside.
▶︎ Ultra thin type (0.75mm)
▶︎ Suitable for high density surface mounting
▶︎ Excellent shock and heat resistance.
▶︎ Complete Pb-free
▶︎ A crystal resonator processed by high reliable photolithographic technology inside.
SPECIFICATIONS
Item | Symbol | Specifications |
---|---|---|
Nominal Frequency | f_nom | 32.768kHz |
Frequency Tolerance | f_tol | ±20 x 10-6
※Please contact us for inquiries regarding available tolerance. |
Turnover Temperature | Ti | +25±5ºC |
Parabolic Coefficient | B | (−0.033±10%) x 10-6/ºC2 |
Load Capacitance | CL | 6.0pF、7.0pF、9.0pF、12.5pF
※Please contact us for inquiries regarding available CL. |
Motional Resistance(ESR) | R1 | 30kΩ typ.(+25℃)
40kΩ max.(-40℃~+85℃) |
Absolute Maximum Drive Level | DLmax. | 1.0μW max. |
Drive Level | DL | 0.1μW typ. |
Shunt Capacitance | C 0 | 1.2pF typ. |
Frequency Ageing | f_age | ±3 x 10-6/Year |
Operating Temperature | T_use | -40 〜 +85ºC |
Storage Temperature | T_stg | -55 〜 +125ºC |
APPLICATIONS
- Module
- Note PC, Tablet PC, Mobile Device
- Sub-clock function for a variety of MicroControllers
- Consumer electronics products for saving standby energy consumption

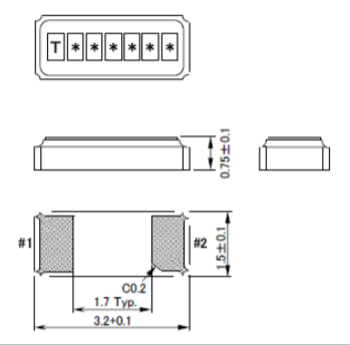

DRAWING
Click to enlarge.
