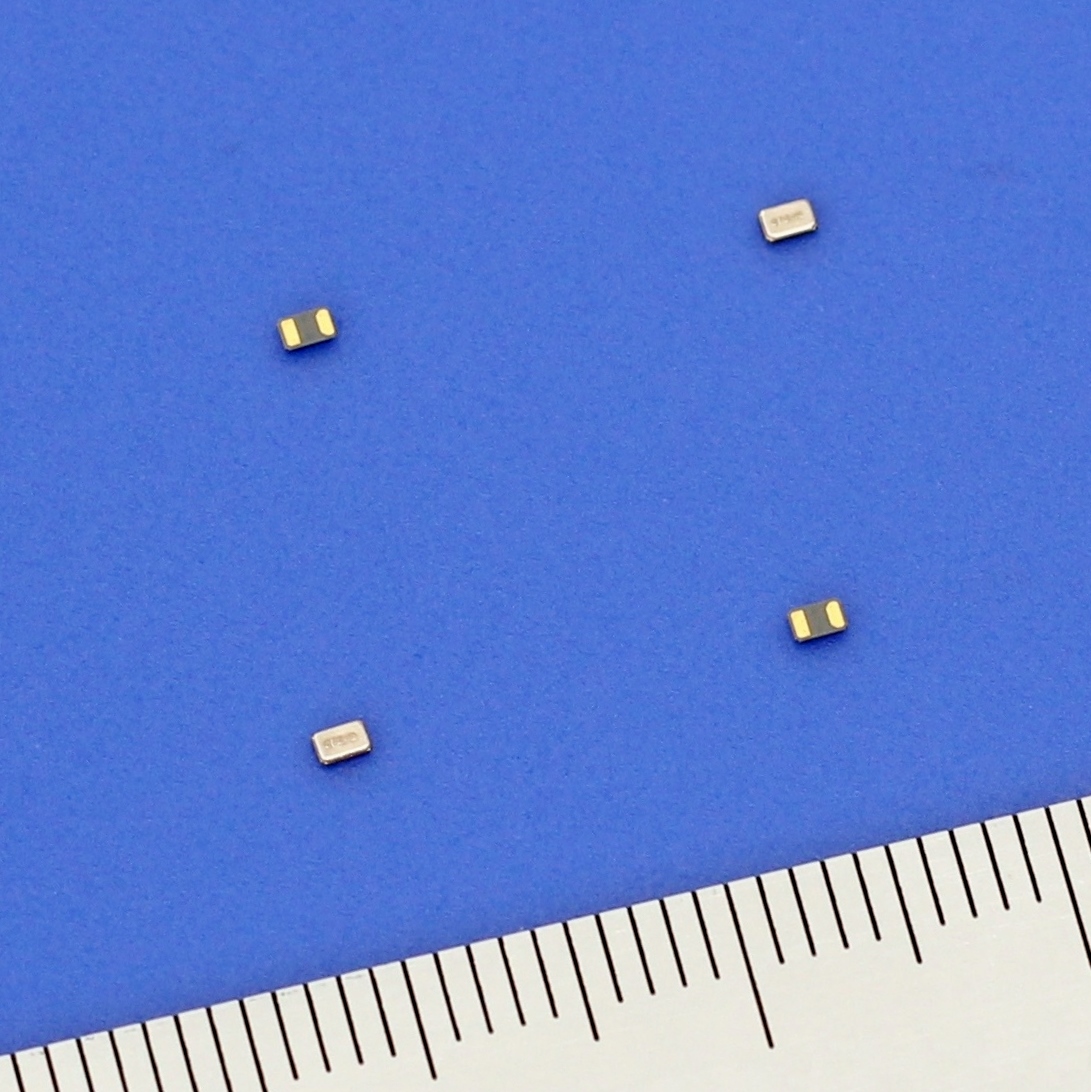

SCX Series (SC-16S) SMD Type Quartz Crystal

FEATURES

▶︎ Thin type with height 0.5mm max.
▶︎ SMD type suitable for high density surface mounting.
▶︎ Excellent shock and heat resistance.
▶︎ Pb-free.
▶︎ Complies with EU RoHS directive
▶︎ A crystal resonator processed by high reliable photo-lithographic technology inside.

SPECIFICATIONS

Item Symbol Specifications
Nominal Frequency f_nom 32.768kHz
Frequency Tolerance f_tol ±20 x 10-6



※Please contact us for inquiries regarding available tolerance.

Turnover Temperature Ti +25±5ºC
Parabolic Coefficient B (−0.036±10%) x 10-6/ºC2
Load Capacitance CL 6.0pF、7.0pF、9.0pF、12.5pF



※Please contact us for inquiries regarding available CL.

Motional Resistance(ESR) R1 90kΩ max.
Absolute Maximum Drive Level DLmax. 0.5μW max.
Drive Level DL 0.1μW typ.
Shunt Capacitance 0 1.2pF typ.
Frequency Ageing f_age ±3 x 10-6/Year
Operating Temperature T_use -40 〜 +85ºC
Storage Temperature T_stg -55 〜 +125ºC

APPLICATIONS

  • Smart ring
  • Smartwatch
  • Various communication modules
  • Sub-clock function for a variety of Microcomputer, etc.

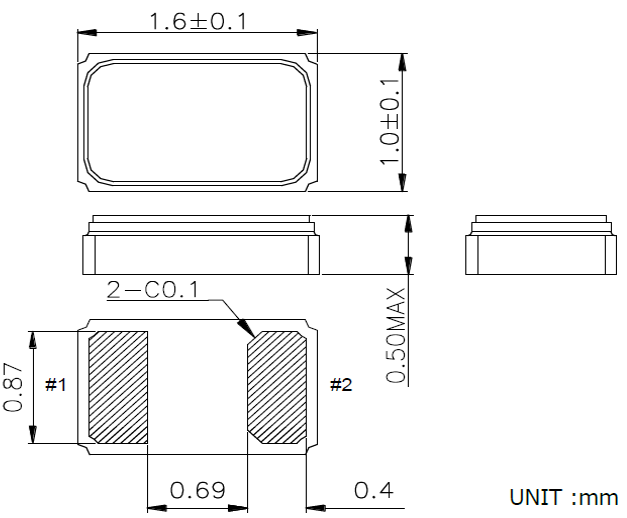

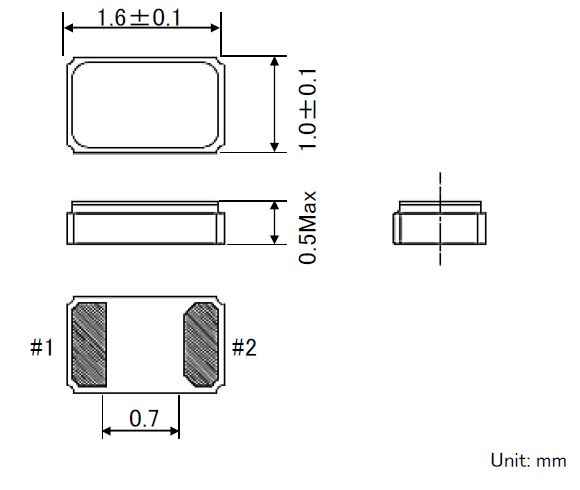

DRAWING

SC-16S-1

Click to enlarge.
