Centerless type SG1-IB

The small footprint internal grinder which was developed to grind small parts with high efficiency.

machine-tool-img01s

Features

  • Equipped 2 roller 1 shoe type workhead with many results by bearing grinding.
  • Equipped high speed loading device driven by servo motor and realizes high productivity.
  • Respond to a variety of needs by various options including the transferring system.
  • Realize the large downsizing of machine itself





Grinding Specifications

Machine Type SG1-IB
Min. [mm] Max. [mm]
Outer diameter φ1.5 φ16
Inner diameter φ1 φ10
Width 1 8

機械内部

or-inside

加工例

Machine type     SG1-IB
Workhead type     2 roller 1 shoe
Method of grinding     Reciprocate Grinding
Work Diameter sg1-ib-work1



sg1-ib-work2



Material SUS440C comparable
Hardness HRC58~62 HRC58~64
Stock removal     φ0.1mm φ0.1mm
Grinding
accuracy
Size variation within 2µm
(with constant size)
within 2µm
(with constant size)
Roundness
(O.D.roundness+)
within 0.3µm within 0.3µm
Roughness within Rz 1.2µm     within Rz 1.2µm
Cylindricity within 2µm     within 2µm
Straightness     within 1µm     within 1.5µm
R Shape     within 2µm     within 2µm
Cycle Time     within 8.5sec     within 12.5sec

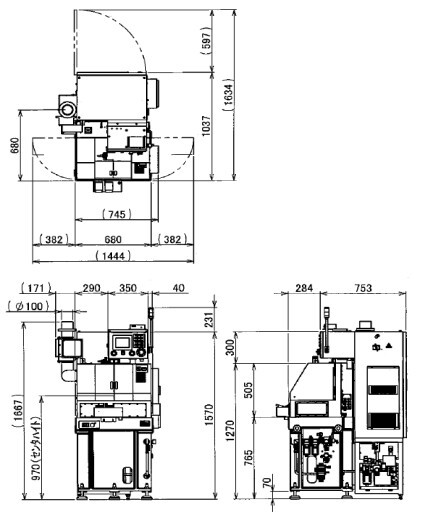

Machine Dimensions

sg1-orib-dim
