Chuck type SIG-2SⅡ / SIG-3SⅡ

High-precision internal grinder with multiple grinding wheel spindles which enables a wide range of grinding

sig-2sii

Features

  • Single chuck and dual spindles enable a wide range of grinding.



Grinding Specifications

Diaphragm workhead

Outer diameter Maxφ50mm
Inner diameter     Maxφ20mm
Width Max100mm
Seat depth     Max60mm
Seat angle     35° to 100°

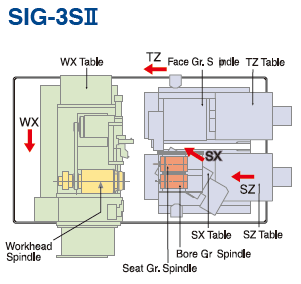

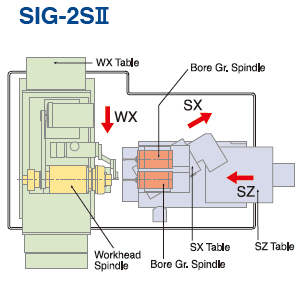

Layout

sig-2sii-3sii_layout1
sig-2sii-3sii_layout2

Applications

Gasoline-diesel injection nozzles, Pumps

sig-2sii-3sii_work1
sig-2sii-3sii_work2
sig-2sii-3sii_work3
sig-2sii-3sii_work4
