Chuck type SIG-SⅡ-UP

High-precision, high-efficiency internal grinder for ultimate geometric precision based on SII's unique and innovative concept

sig-sii-up

Features

  • Workhead-spindle with highly-rigid, hybrid hydrodynamic bearing
    Ceramic concrete bed reduces grinding vibration.



Grinding Specifications

Diaphragm workhead

Outer diameter Maxφ12mm
Inner diameter     Maxφ5mm
Width     Max20mm
Seat depth     Max15mm
Seat angle     15°～180°

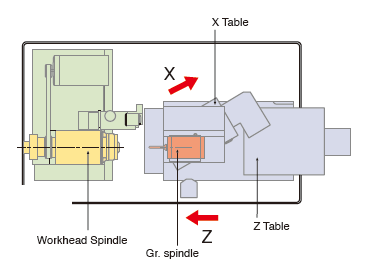

Layout

sig-sii-up_layout

Applications

Gasoline-diesel injection nozzles, Pumps



sig-sii-up_work1
sig-sii-up_work2
sig-sii-up_work3
sig-sii-up_work4
sig-sii-up_work5
sig-sii-up_work6
