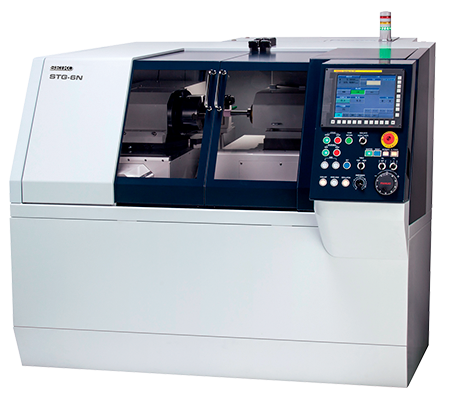

CNC Internal Grinder STG-6N

It is a space-saving CNC internal grinder that realizes the equipment width of 1,600 mm while supporting 6 inch chuck. Workhead spindle is equipped with a 6 inch scroll chuck to cope with the expansion of the work size which was requested so far. Wheelhead spindle realized high precision and high efficiency grinding by installing our own High rigidity spindle SSPG-045 T100. Efficiency improvement and reduction of workload of operator can be attained by making machine configuration and layout considering workability and operability.

lp_stg6n-1

Features

  • Just size compact design while supporting 6 inch chuck
  • High-rigidity, high-power wheelhead spindle is equipped to realize high-efficiency, high-precision processing
  • Design considering workability
  • Support to FANUC FIELD system



Grinding Rayout

stg-ig-rayout1-1

Internal Grinding

stg-tg-rayout1-1

Taper Grinding
(Workhead swivel)

Applications

Grinding diameter φ50mm φ40mm
Roundness 0.14~0.28µm
(1-15/MZ/2CR)
0.16~0.44µm
(1-15/MZ/2CR)
Roughness Less than Ra 0.1µm
(cutoff0.8mm/full length)
Less than Ra 0.1µm
(cutoff0.8mm/full length)
Cycle time 30~60sec 30~60sec
Work stg-6n_work1
Ring gauge
stg-6n_work2
Ground spur gear

Specifications

Machine size (W)×(D)×(H) 1,600mm×1,615mm×1,320mm
Grindable size Bore×Length Max φ100mm×100mm
Workhead Speed 0~1,200min-1
Swivel angle Max 20°(-5°~15°)
Chuck Scroll chuck 6 inch(Max outer diameter φ160mm)
Wheelhead spindle SSPG-045 T100 (Max speed 45,000min-1)
Workhead table Stroke 200mm
Lubrication Oil free(LM Guide+Ball Screw)
Wheelhead table Stroke 300mm
Lubrication Oil free(LM Guide+Ball Screw)
Other
Operability Touch Panel 10.4 inch Color
NC FANUC series 0i-F

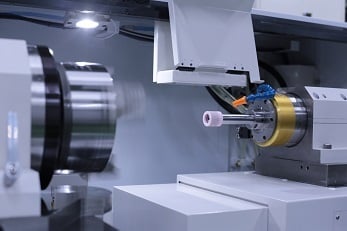

Inside of Machine

stg-6n_inside2

Inside of STG-6N

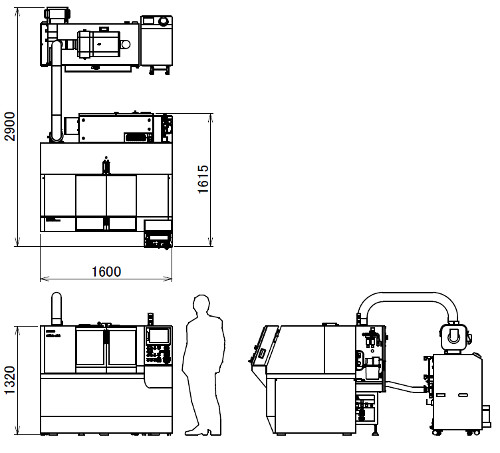

Machine Dimensions

stg-6n_dim
