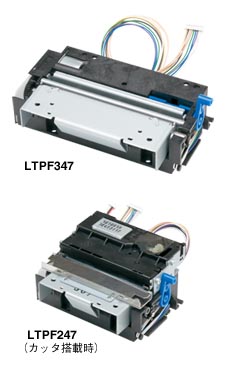

Easy Paper Operation Mechanism 24V
Thermal Printer Mechanism
LTPF series
- Max printing speed: 220mm/sec
- Platen latch function
- Auto cutter option (Slide type) available
| Model | LTPF247F | LTPF247E | LTPF347F | LTPF347E | |
|---|---|---|---|---|---|
| *1 Use recommended thermal papers. *2 Excluding protrusion. | |||||
| Printing | Method | Thermal line dot printing | |||
| Number of dots/line | 432 | 576 | |||
| Resolution (dots/mm) | 8 | ||||
| Paper width (mm) | 58 |
80 |
|||
| Printing width (mm) | 54 | 72 | |||
| Speed (mm/sec) max | 220 | 100 | 220 | 100 | |
| Paper path | Curved | ||||
| Detection | Head temperature | By thermistor | |||
| Platen position | By mechanical switch | ||||
| Out of paper | By photo interrupter | ||||
| Power supply (V) | Operation voltage (Vdd) | 4.75 to 5.25 | |||
| Operation voltage (Vp) | 21.6 to 26.4 | ||||
| Peak current (A) | Head | 5.4 (26.4V / 128 dots) | 2.6 (26.4V / 144 dots) | 5.4 (26.4V / 128 dots) | 2.6 (26.4V / 144 dots) |
| Motor | 0.46 | 0.55 | 0.46 | 0.55 | |
| Service Life | Pulse activation (pulse) | 100 million | |||
| Abrasion resistance (km) | 100*1 | ||||
| Operating temperature (˚C) | 0 to 50 | ||||
| Dimensions (W×D×H mm) | 86.2 × 54.0 × 25.8*2 | 110.2 × 54.0 × 25.8*2 | |||
| Mass (g) | Approx. 150 | Approx. 175 | |||
| Interface | |||
|---|---|---|---|
| Model | IFF001-02B | IFF001-02BK | |
| CPU | PTF00P01 | ||
| Thermal printer | LTPF247F, LTPF347F | ||
| Operating voltage (V) | Vp: 21.6 to 26.4, Vcc: 4.5 to 5.5 | ||
| Character matrix (H×W dots) | 16 dots characters: 16 × 8, 16 × 16 24 dots characters: 24 × 12, 24 × 24 |
||
| Character type | Extended graphics character set | Yes | Yes |
| Katakana character set | No | Yes | |
| Codepage 1252 | Yes | Yes | |
| Downloaded character | Yes | Yes | |
| User-defined character | Yes | Yes | |
| JIS 1 & 2 level kanji | No | Yes | |
| Communication interface | Parallel, Serial (C-MOS) | ||
| Dimensions (W×D×H mm) | 80.0 × 100.0 × 19.6 | ||
| Model | PTF20P01 |
|---|---|
| *3 CG ROM: Japanese | |
| Thermal printer | LTPF247E, LTPF347E |
| Package form | 128pin QFP |
| Operating voltage (V) | Vp: 21.6 to 26.4, Vcc: 4.75 to 5.25 |
| Input frequency (MHz) | 18.43 +/- 0.5% |
| Configuration | C-MOS LSI |
| Communication interface | Parallel, Serial |
| Character type | Extended graphics character set, Other characters is availabe with CGs*3 or external ROM |
| Character matrix (H×W dots) | 16 dots characters: 16 × 8, 16 × 16 24 dots characters: 24 × 12, 24 × 24 |
| Dimensions (W×D×H mm) | 22.0 × 16.0 × 3.15 |
| Model | ACUF224J | ACUF224H | ACUF324J | ACUF324H | |
|---|---|---|---|---|---|
| *4 Use recommended thermal papers. *5 Depending upon specified conditions. | |||||
| Thermal printer | LTPF247 | LTPF347 | |||
| Cutting | Method | Slide type | |||
| Paper width (mm) | 58 |
80 |
|||
| Paper thickness (μm) | 60 to 80*4 | ||||
| Cutting type | Partial cut
(Leave center point) |
Full cut | Partial cut
(Leave center point) |
Full cut | |
| Operating time (sec/cycle) max | 0.6 (24V) | ||||
| Cutting pitch (mm) min | 10 | ||||
| Cut frequency (cut/min) max | 30 | ||||
| Operating voltage (V) | Motor | 21.6 to 26.4 | |||
| Detector (control switch) | 4.5 to 5.5 | ||||
| Starting current (A) | 1.2 | ||||
| Life (Cut) | 1,000,000*5 | ||||
| Dimensions (W×D×H mm) | 80.0 × 64.0 × 19.0 | 102.0 × 64.0 × 19.0 | |||
| Mass (g) | Approx. 130 | Approx. 150 | |||
| Model | WU282 |
|---|---|
| Thermal Printer | LTPF247F |
| Paper width (mm) | 58 |
| Paper thickness (μm) | 70 to 80 |
| Outside diameter of paper roll (mm) max | φ 83 |
| Inside diameter of paper roll (mm) min | φ 20 |
| Operating Voltage (V) | 21.6 to 26.4 |
| Speed (mm/s) max | 220 |
| Life (operating hours) | 160 |
| Dimensions (W×D×H mm) | 87.8 × 92.0 × 97.6 |
| Mass (g) | Approx. 136 |
