Mobile Printer

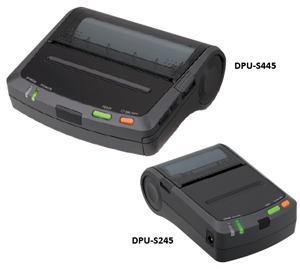

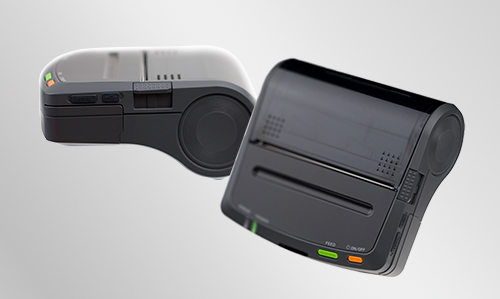

DPU-S245S445

Mobile Printer

DPU-S series

  • Max printing speed:
  • 100mm/sec (DPU-S245)
  • 90mm/sec (DPU-S445)
  • Interface: Bluetooth®, USB and Serial
  • Compact and light-weight
  • Easy paper operation
  • Wide variety of driver and utility software suite
  • Measuring instrument
  • PDA
  • Barcode
  • Portable Printer
  • Label
  • Medical equipment

Medical equipment

Model DPU-S245 DPU-S445
*1 Only Bluetooth® model. *2 Use recommended thermal papers. *3 Excluding protrusion. *4 Including battery, excluding roll paper.
*5
DPU-Sx45-00B-E model only. *6 Please see "Associated software tool" for details.
Printing Method Thermal line dot printing
Number of dots/line 384 832
Resolution (dots/mm) 8
Paper width (mm) 58+0-1 112+0-1
Printing width (mm) 48 104
Speed (mm/sec) max 100 90
Outside diameter of paper roll (mm) max ф 38 ф 50
Character matrix (H×W dots) 24 × 12, 24 × 24, 16 × 8, 16 × 16
Character dimensions (H×W mm) 3.0 × 1.5, 3.0 × 3.0, 2.0 × 1.0, 2.0 × 2.0
Number of columns 24, 12, 32, 16 52, 26, 69, 34
Type of Paper Roll paper, Label roll paper Roll paper, Label roll paper, Cut sheet paper
Character type Extended graphics character set, Katakana character set,
CP1252, Optional font, Downloaded character,
User-defined character, JIS 1 & 2 level kanji
Bar code UPC-A/E, JAN (EAN) 8/13, ITF, CODE39, CODABAR,
CODE128, PDF417, QR Code, MaxiCode, Data Matrix
Power supply (V) Li-lon battery, Specified AC adapter
Communication interface Bluetooth®*1, USB, Serial
Input buffer 4K bytes
Command ESC/P™ conformity
Cutting Tear bar
Operating temperature (˚C) -10 to 50 0 to 50
Service life (km) 50*2
Dimensions (W×D×H mm) 83 × 130 × 45*3 145.0 × 135.0 × 58.0*3
Mass (g) Approx. 280*4 Approx. 490*4
Standard FCC, CE, VCCI, CCC*5
Option AC adapter, Battery pack, Battery charger, AC cable,
USB cable, Serial cable, Carrying case
Software*6 Printer driver, Windows® CE (SDK), Android™ (SDK) , iOS(SDK)
Serial interface specification
Item Specification
Baud rate 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps
Data bit 7bits, 8bits
Parity bit Odd, Even, or None
Stop bit 1bit, 2bits
Control method H/W BUSY, Xon/Xoff
USB interface specification
USB printerclass 2.1 conformity
Bluetooth® interface specification
Based on Bluetooth® Ver. 2.0 + EDR

USB interface specification/Bluetooth interface specification/Infrared interface specification
USB interface specification/Bluetooth interface specification/Infrared interface specification
