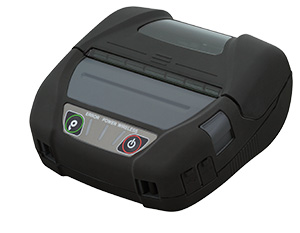

Mobile Printer
MP-A40 series
- High Reliability
Drop rating: 2.0m (6.6feet) multiple
IP rating: IP54
Operating temperature: -20°C to 50°C - Wide variety of driver and SDK for mobile equipment
- Simple operation
- Stylish design
| Model | MP-A40 | |
|---|---|---|
| Printing | Method | Thermal line dot printing |
| Number of dots/line | 832 | |
| Resolution (dots/mm) | 8 | |
| Paper width (mm) |
80
/ 100
/ 105
/ 112
|
|
| Printing width (mm) | 104 | |
| Speed (mm/sec) max | 105 | |
| Outside diameter of paper roll (mm) max | ф 58 | |
| Character matrix (H×W mm) | 24 x 12, 24 x 24, 16 x 8, 16 x 16 | |
| Character dimensions (H×W mm) | 3.0 × 1.5, 3.0 × 3.0, 2.0 × 1.0, 2.0 × 2.0 | |
| Type of Paper | Roll paper, Label roll paper | |
| Character type | Codepage (17 pages), Katakana character set, User-defined character, Downloaded character, Optional font, JIS 1st and 2nd level Kanji, Special characters |
|
| Bar code | UPC-A/E, JAN(EAN)8/13, ITF, CODE39, CODABAR, CODE93, CODE128, PDF417, QR Code, MaxiCode, Data Matrix, GS1 Databar |
|
| Power supply(v) | Option: Specified AC adapter, Li-ion battery | |
| Communication interface | USB, Bluetooth® | |
| Input buffer | 4k bytes | |
| Command | ESC/POS™ conformity, CPCL conformity, HTML command | |
| Cutting | Tear bar | |
| Drop Rating | 2.0m (6.6feet) multiple*1 | |
| IP rating | IP54*1 | |
| Operating temperature (°C) | -20 to 50 | |
| Service life (km) | 50*2 | |
| Dimensions (WxDxH mm) | 156 × 152 × 71*3 | |
| Mass (g) | Approx. 760*4 | |
| Standard | FCC, CE, VCCI | |
| Bundled items | Belt clip, Partition plate | |
| Options | AC adapter, Battery pack, Battery charger (single/quad), AC cable, USB cable, Serial cable, Car charger, Strap |
|
| Software*5 | Printer Driver/SDK, Windows® CE SDK, Android™ SDK, iOS SDK, URL Print Agent | |
*1 test performance by specified condition.
*2 Use recommended thermal papers. *3 Excluding protrusion
*4 Including battery, excluding roll paper *5 Please see "Associated software tool" for details
