POS Printer - POS -

POS Printer Option Display

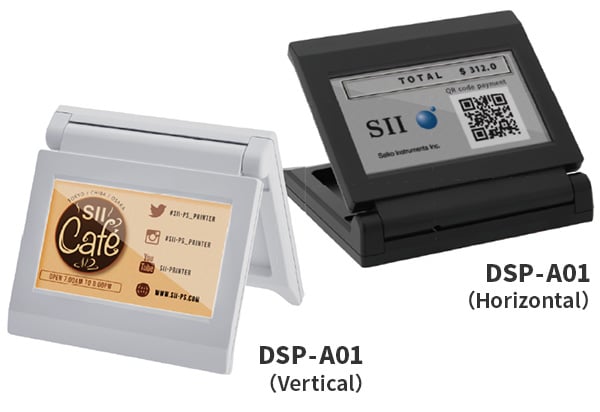

DSP-A01
- 4.3inch color LCD (W480 x H272 pixels)
- Various installation methods:
Mounted on printer (RP-F10), Stand-alone,
Fixing screw (wall mount) - Various display contents:
Character, Barcode (1D Barcode / QR code), Imege (JPEG, PMG) - Various applications:
Customer display, QR payment, Advertisement - Printer error and its recovery method
are displayed (Connect with RP-F10) - Various drivers and wide variety utility softwar
Model | DISPLAY DSP-A01 | |
---|---|---|
LCD | Panel Size | 4.3 inch |
Method | TFT LCD | |
Color | 16 Bit Color | |
Number of Pixels (pixel) | 480 (W) x 272 (H) | |
Active Area (mm) | 95.04 (W) x 53.856 (H) | |
Pixel Pitch (mm) | 0.198 (W) x 0.198 (H) | |
Luminance (cd/m²) | 300 | |
Contents | Character, Barcode, Image | |
Character | Character matrix (H × W pixel) | 24 x 12, 24 x 24, 16 x 8, 16 x 16 |
Character size (H × W mm) | 4.752 x 2.376, 4.752 x 4,752, 3.168 x 1.584, 3.168 x 3.168 | |
Number of characters | ANK : 320 characters (40 characters x 8 lines) Kanji : 160 characters (20 characters x 8 lines) |
|
Character type | Codepage (18 Pages), Katakana character set, User-defined character, Optional font (max. 255 × 255 pixel), JIS 1 & 2 Level Kanji, Special characters |
|
Character decoration | Vertical double (×2, ×4 ), Horizontal double (×2, ×4 ), Bold, Underlin | |
Barcode | 1D | UPC-A/E, JAN (EAN) 8 /13 , ITF, CODABAR, Code39 , Code128 |
2D | QR code (Version 1 to 22 , Cell size 1 to 16 pixel) | |
Image | JPEG, PNG | |
Power supply | DC 4.75 V to 5.25 V (Activated with USB bus power) | |
Communication interface | USB 2.0 Full speed, micro B connector | |
Operating Temperature (°C) | 5 to 45 | |
Service life | 30,000 hours | |
Dimensions (W×D×H mm) | Approx. 120 x 25 x 120*1 | |
Mass (g) | Approx. 265 | |
Standard | FCC, CE, VCCI | |
Display tilt angle | 0 to 150 ° | |
Installation method | Mounted on printer (RP-F10), Stand-alone, Fixing screw (wall mount) | |
Software*2 | Printer Driver/SDK, OPOS Driver, POS for .NET Driver, Android™ SDK, iOS SDK |
*1 Excluding protrusion. *2 Please see "Associated software tool" for details.
Windows® is the registered trademark of Microsoft Corporation(USA).
Android™ is a trademark of Google Inc.
iOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.
