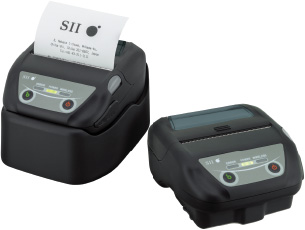

Mobile Printer
MP-B30 series
- Compact & Light Weight
- Drop rating: 1.8m (6feet), IP rating: IP54
- Printing Speed: 127mm/sec max
- Simple Operation & Stylish Design
- Option Cradle for Charging
| Model | MP-B30 | |
|---|---|---|
| Printing | Method | Thermal line dot printing |
| Number of dots/line | 576 | |
| Resolution (dots/mm) | 8 | |
| Paper width (mm) |
80
 |
|
| Printing width (mm) | 72 | |
| Speed (mm/sec) max | 127 (5inch) | |
| Outside diameter of paper roll (mm) max | ф 51 | |
| Character matrix (H×W mm) | 24 x 12, 24 x 24, 16 x 8, 16 x 16 | |
| Character dimensions (H×W mm) | 3.0 × 1.5, 3.0 × 3.0, 2.0 × 1.0, 2.0 × 2.0 | |
| Type of Paper | Roll paper | |
| Character type | Codepage (17 pages), Katakana character set, User-defined character, Downloaded character, Optional font, JIS 1st and 2nd level Kanji, Special characters |
|
| Bar code | UPC-A/E, JAN (EAN)8 /13, ITF, CODE39, CODABAR, CODE93, CODE128, PDF417, QR Code, MaxiCode, Data Matrix, GS1 Databar |
|
| Power supply | Li-ion Battery | |
| Communication interface | USB, Bluetooth®, W-LAN*1 | |
| Input buffer | 4K bytes | |
| Command | ESC/POS™ conformity | |
| Cutting method | Tear bar | |
| Drop Rating | 1.8m*2 | |
| Operating Temperature (°C) | -20 to 55 | |
| Service life: Abrasion resistance (km) | 50*3 | |
| Dimensions (W×D×H mm) | 105 × 126 × 58*4 | |
| Mass (g) | 395*5 | |
| Standard | FCC, CE, VCCI | |
| Bundled items | AC adapter, Battery, USB cable, Belt clip, Sample roll paper | |
| Options | Cradle for charging, Single battery charger, Quad battery charger, Car charger, Strap/Attachment, Carrying case |
|
| Software*6 | Printer Driver/SDK, OPOS Driver, POS for .NET Driver, Windows® CE SDK, Android™ SDK, iOS SDK, URL Print Agent |
|
*1 Selected model. *2 This number is test result based on SII procedures, not guaranteed value. *3 Use recommended thermal papers.
*4 Excluding protrusion *5 with battery, without paper roll *6 Please see "Associated software tool" for details.
ESC/POS™: Registered trademark of SEIKO EPSON CORP.
Windows is a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
Android is a trademark of Google LLC.
iPad, iPhone, and iPod are trademarks of Apple Inc., registered in the United States and other countries and regions.
The iPhone trademark is used under license from AIPHONE CO., LTD.
IOS is a trademark or registered trademark of Cisco in the United States and other countries and is used under license.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.
All other company names and product names mentioned herein are trademarks or registered trademarks of their respective owners.
