Mobile Printer

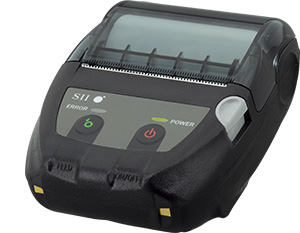

MP-B20 Mobile Receipt Printer - Compact, Lightweight, and USB Charging

Mobile Printer

 MP-B20 series

  • Compact & Light Weight
  • Max printing speed: 80mm/sec
  • Simple Operation & Stylish Design
  • Charging battery by USB (No AC adapter required)

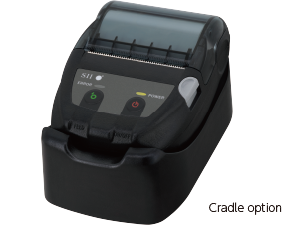

  • Cradle option
  • The MP-B20 series is ideal for measuring instruments
  • The MP-B20 series is an ultra-compact mobile printer line that pairs with handheld terminals (PDAs) via Bluetooth for immediate on-the-spot issuance
  • The MP-B20 series is supports barcode printing
  • The MP-B20 series is ideal for mobile printers
  • The MP-B20 series is suitable for medical applications
Model MP-B20
Printing Method Thermal line dot printing
Number of dots/line 384
Resolution (dots/mm) 8
Paper width (mm)
58
plus01
Printing width (mm) 48
Speed (mm/sec) max 80
Outside diameter of paper roll (mm) max ф 40
Character matrix (H×W mm) 24 x 12, 24 x 24, 16 x 8, 16 x 16
Character dimensions (H×W mm) 3.0 × 1.5, 3.0 × 3.0, 2.0 × 1.0, 2.0 × 2.0
Type of Paper Roll paper
Character type Codepage (17 pages), Katakana character set,
User-defined character, Downloaded character,
Optional font, JIS 1st and 2nd level Kanji, Special characters
Bar code UPC-A/E, JAN(EAN)8/13, ITF, CODE39,
CODABAR, CODE93, CODE128, PDF417,
QR Code, MaxiCode, Data Matrix, GS1 Databar
Power supply(v) Li-ion battery
Communication interface USB, Bluetooth®
Input buffer 4K bytes
Command ESC/POS™ conformity
Cutting Tear bar
Drop Rating 1.5m*1
Operating temperature (°C) -10 to 50
Service life (km) 50*2
Dimensions (WxDxH mm) 79.0 × 110.0 × 44.0*3
Mass (g) Approx. 180*4
Standard FCC, CE, VCCI
Bundled items USB cable, Battery, Belt clip, Sample roll paper
Option Cradle for charging
Software*5 Printer Driver/SDK, Windows® CE SDK, Android™ SDK, iOS SDK

*1 This number is test result based on SII procedures, not guaranteed value. *2 using specified thermal paper *3 Excluding protrusion
*4 with battery, without paper roll ESC/POS™ is a registered trademark of SEIKO EPSON Corporation. *5 Please see "Associated software tool" for details.
