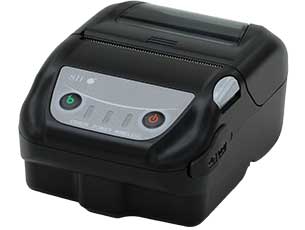

Mobile Printer
MP-B21L
- Compact & Light Weight
- Drop rating: 1.8 m (6feet), IP rating: IP54
- Simple Operation & Stylish Design
- Printing Speed: 153 mm/sec max
- Option Cradle for Charging
- SII Layout Editor: Label designing application (iOS, Android & Windows)
- SII URL Print Agent: PDF print application (iOS & Android)
| Model | MP-B21L | |
|---|---|---|
| Printing | Method | Thermal line dot printing |
| Number of dots/line | 384 | |
| Resolution (dots/mm) | 8 | |
| Paper width (mm) |
58
 |
|
| Printing width (mm) | 48 | |
| Speed (mm/sec) max | 153 (6inch) | |
| Outside diameter of paper roll (mm) max | ф 51 | |
| Character matrix (H×W mm) |
24 x 12, 24 x 24, 16 x 8, 16 x 16 | |
| Character dimensions (H×W mm) | 3.0 × 1.5, 3.0 × 3.0, 2.0 × 1.0, 2.0 × 2.0 | |
| Type of Paper | Roll paper, Label roll paper | |
| Character type | Code page(17pages), Optional font, Downloaded character, User-defined character, JIS 1&2 Level Kanji, Special character |
|
| Bar code | UPC-A/E, JAN(EAN)8/13, ITF, CODE39, CODABAR, CODE93, CODE128, PDF417, QR Code, MaxiCode, Data Matrix, GS1 Databar, AZTEC | |
| Power supply | Li-ion Battery | |
| Communication interface | USB, Bluetooth®, W-LAN*2 | |
| Input buffer | 4K bytes | |
| Command | ESC/POS™ conformity, ZPL Ⅱ™ conformity, CPCL conformity | |
| Cutting method | Tear bar | |
| Drop rating | 1.8m*3 | |
| IP rating | IP54*3 | |
| Operating Temperature (°C) | -20 to 55 | |
| Service life: Abrasion resistance (km) |
50*4 | |
| Dimensions (W×D×H mm) | 90 × 126 × 58*5 | |
| Mass (g) | 370*6 | |
| Standard | FCC, CE, VCCI | |
| Bundled items | AC adapter, Battery, Belt clip, Sample roll paper | |
| Options | Cradle for charging, USB cable, Single battery charger, Quad battery charger, Car charger, Strap, Carrying case |
|
| Software*7 | Windows: Printer Driver / OPOS / POS for .NET / Utility / Layout Editor Android: Printer Class Library / URL Print Agent / Layout Editor / MAUI SDK / Utility iOS: Printer Class Library / URL Print Agent / Layout Editor / MAUI SDK / Utility |
|
*1 with Partition plate (option) *2 Selected model. *3 This number is test result based on SII procedures, not guaranteed value.
*4 Use recommended thermal papers *5 Excluding protrusion *6 with battery, without paper roll
*7 Please see "Associated software tool" for details.
