Panel-Mount Printer Unit Low Voltage

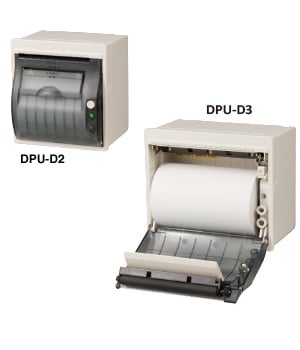

Panel-Mount Printer Unit
DPU-D series
- Max printing speed:
- 100mm/sec(DPU-D2)
- 80mm/sec(DPU-D3)
- Small and compact design
- Panel-mount type
- Easy paper operation
| Model | DPU-D2-00A | DPU-D3-00A | |
|---|---|---|---|
| *1 Use recommended thermal papers. *2 Excluding protrusion. *3 Please see "Associated software tool" for details. | |||
| Printing | Method | Thermal line dot printing | |
| Number of dots/line | 384 | 576 | |
| Resolution (dots/mm) | 8 | ||
| Paper width (mm) | 58 |
80 |
|
| Printing width (mm) | 48 | 72 | |
| Speed (mm/sec) max | 100 (8.5V) | 80 (8.5V) | |
| Character matrix (H×W dots) | 24 × 24, 24 × 12, 16 × 16, 16 × 8 | ||
| Character size (H×W mm) | 3.0 × 3.0, 3.0 × 1.5, 2.0 × 2.0, 2.0 × 1.0 | ||
| Number of columns | 16, 32, 24, 48 | 24, 48, 36, 72 | |
| Character type | Extended graphics character, Katakana character set, CP1252, Optional font, Downloaded character, User-defined character, JIS 1 & 2 level kanji |
||
| Bar code | UPC-A/E, JAN (EAN) 8/13, ITF, CODE39, CODABAR, CODE93, CODE128, PDF417, QR Code, MaxiCode, Data Matrix |
||
| Power supply (V) | Driving voltage (5.0 to 9.0) | ||
| Communication interface | Serial / USB | ||
| Input buffer | 4K bytes | ||
| Command | ESC/POS™ conformity | ||
| Cutting | Tear bar | ||
| Operating Temperature (˚C) | -10 to 50 | ||
| Service life (km) | 50*1 | ||
| Dimensions (W×D×H mm) | 80.0 × 68.8 × 85.5*2 | 102.0 × 68.8 × 85.5*2 | |
| Mass (g) | Approx. 180 | Approx. 210 | |
| Software*3 | Printer Driver/SDK | ||
