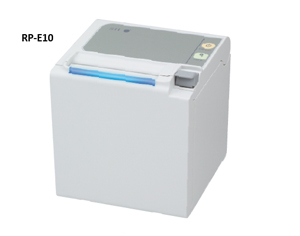

POS Printer
RP-E10 series
- RP-E10: Receipt top-exit
RP-E11: Receipt front-exit (IPX1) - Compact cube: 129mm x 129mm x 129mm
- Max printing speed: 350mm/sec
- High Reliability: 150km, 2 million cuts
- Wide variety of driver and utility software suite

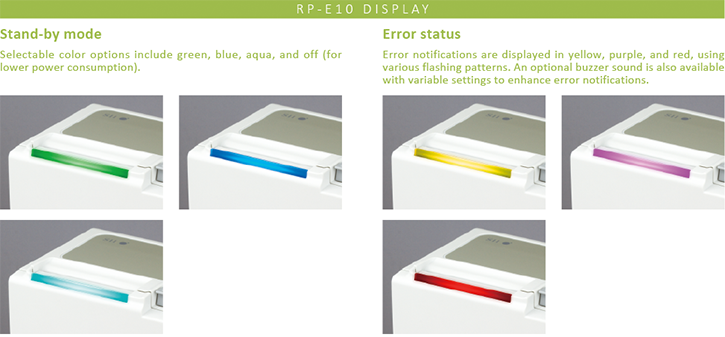

- Large LED indicator (Multi-color)
| Model | RP-E10 (Receipt top-exit) | RP-E11 (Receipt front-exit) | |
|---|---|---|---|
| Printing | Method | Thermal line dot printing | |
| Number of dots/line | 576 | ||
| Resolution (dots/mm) | 203 (8 dots / mm) | ||
| Paper width (mm) |
58
/ 80
|
||
| Printing width (mm) | 54 / 72 | ||
| Speed (mm/sec) max | 350 | ||
| Outside diameter of paper roll (mm) max | ф 83 | ||
| Inside diameter of paper roll (mm) | ф 12 | ||
| Character matrix (H×W dots) |
24 × 12, 24 × 24, 16 × 8, 16 × 16 | ||
| Character dimensions (H×W mm) |
3.0 × 1.5, 3.0 × 3.0, 2.0 × 1.0, 2.0 × 2.0 | ||
| Type of Paper | Roll paper, Timing mark roll paper (Built-in timing mark sensor) | ||
| Character type | Codepage (14 pages), Katakana character set, User-defined character, Downloaded character, Optional font, JIS 1st and 2nd level Kanji, Special characters |
||
| Bar code | UPC-A/E, JAN (EAN) 8/13, ITF, CODABAR, CODE39, CODE93, CODE128, QR Code, PDF417, GS1 Databar, MaxiCode, Data Matrix |
||
| Power supply (V) | Specified AC adapter, External power (DC24V ± 5%) | ||
| Communication interface | USB, Serial, Powered USB, Ethernet | ||
| Input buffer | 16k bytes | ||
| Command | ESC/POS™ conformity, Markup Language | ||
| Cutting | Methods | Slide type | |
| Cutting type | Full cut / Partial cut (Leave center point) | ||
| Operating temperature (˚C) | 5 to 45 | ||
| Service life (km) | Abrasion resistance (km) | 150*1 | |
| Paper cutting (cut) | 2,000,000*1 | ||
| Dimensions (W×D×H mm) | 129.0 × 129.0 × 129.0*2 | ||
| Mass (g) | Approx. 1300 | ||
| Standard | FCC, CE, VCCI, etc. | ||
| Option | Wall mounting kit, Back plate | ||
| Cash drawer | 2 drivers (24V / 1A) | ||
| Body color | 2 colors: White / Black | ||
| Software*3 | Printer Driver/SDK, OPOS Driver, POS for .NET Driver, JavaPOS™, Android™ SDK, iOS SDK, Linux® CUPS Filter/SDK | ||
*1 Use recommended thermal papers. *2 Excluding protrusion. *3 Please see "Associated software tool" for details.
ESC/POS™: Registered trademark of SEIKO EPSON CORP.
Windows is a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
Android is a trademark of Google LLC.
iPad, iPhone, and iPod are trademarks of Apple Inc., registered in the United States and other countries and regions.
The iPhone trademark is used under license from AIPHONE CO., LTD.
IOS is a trademark or registered trademark of Cisco in the United States and other countries and is used under license.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.
All other company names and product names mentioned herein are trademarks or registered trademarks of their respective owners.
iOS/Android™/Windows®
& Bluetooth®
With the stylish and compact design, RP series performs a key role in smart device POS system. The Bluetooth® interface and software SDK for Android™, Windows® and iOS devices provide a best solution for your system.
"Made for iPod", "Made for iPhone", "Made for iPad" mean that an electronic accessory has been designed to connect specifically to iPod, iPhone and iPad respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.
OPTION
Wall mount kit
The smallest printer fits any place, even on the wall.
Back plate (Black / White)
Cables on back side can be neatly covered by this option.
