Easy Paper Operation Mechanism Low Voltage
Thermal Printer Mechanism

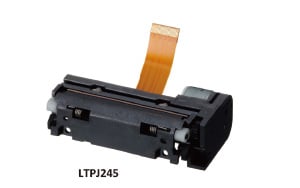

LTPJ245
- Max. printing speed: 75mm/sec
- Compact and light-weight
- Front open mechanism with latch function
| Model | LTPJ245 | |
|---|---|---|
| *1 Use recommended thermal papers. *2 Excluding protrusion. | ||
| Printing | Method | Thermal line dot printing |
| Number of dots/line | 384 | |
| Resolution (dots/mm) | 8 | |
| Paper width (mm) | 58 |
|
| Printing width (mm) | 48 | |
| Speed (mm/sec) max | 75 | |
| Paper path | Straight | |
| Detection | Head temperature | By thermistor |
| Out of paper | By photo interrupter | |
| Power supply (V) | Operation voltage (Vdd) | 3.0 to 3.6 |
| Operation voltage (Vp) | 5.5 to 9.5 | |
| Peak current (A) | Head | 2.49 (9.5V / 45dots) |
| Motor | 0.6 | |
| Service Life | Pulse activation (pulse) | 100 million |
| Abrasion resistance (km) | 50*1 | |
| Operating temperature (˚C) | -10 to 50 | |
| Dimensions (W×D×H mm) | 68.5 × 36.5 × 22.0*2 | |
| Mass (g) | Approx. 38 | |
