SPECIFICATIONS

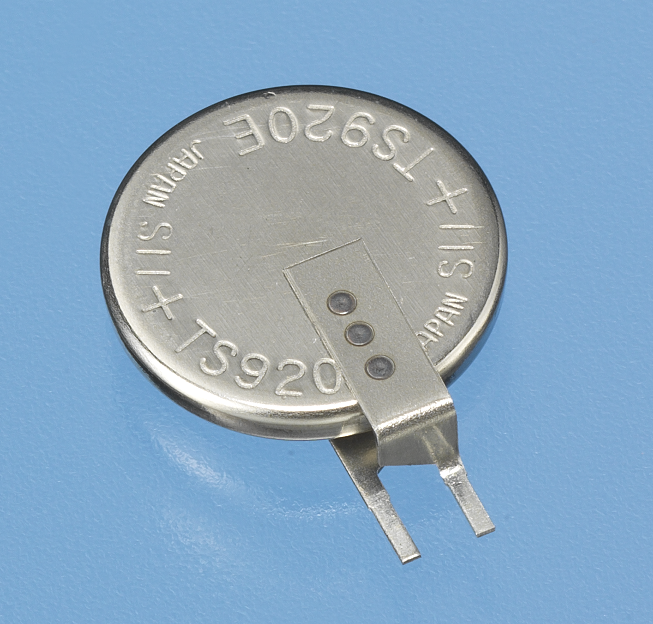

1_TS920E

Type TS920E
Nominal Voltage(V) 1.5
Charge Voltage(V) 1.5 to 3.0
Nominal Capacity (Voltage Range V)(mAh) 5.5 (2.3 to 1.0)
Internal Impedance(Ω) 20
Standard Charge Discharge Current(mA) 0.05
Cycle Life (Time)100% D.O.D(Depth of Discharge) 50
Cycle Life (Time)20% D.O.D(Depth of Discharge) 1000
Size Diameter(mm) 9.5
Size Height(mm) 2.0
Weight(g) 0.46

Go to top of page

CHARACTERISTICS

Click to enlarge.

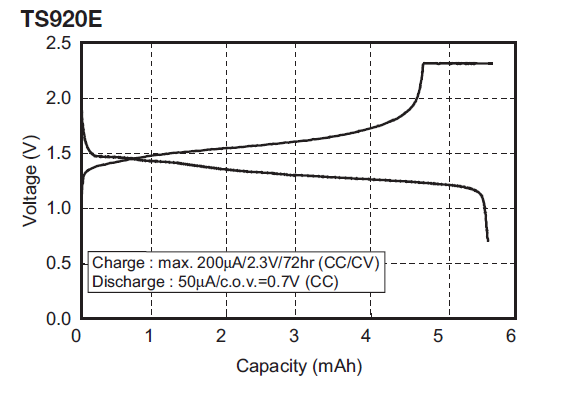

Charge/Discharge Characteristics

charge_discharge

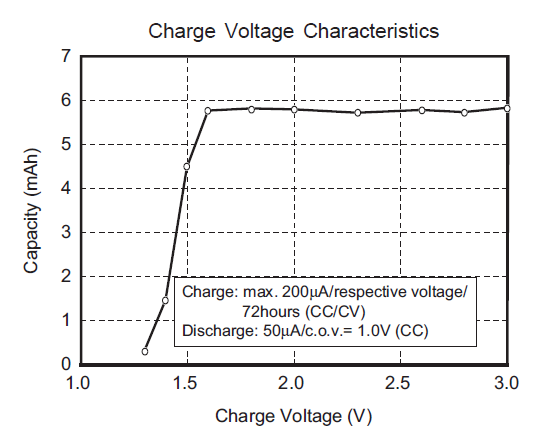

Charge Voltage Characteristics

Charge Voltage Characteristics

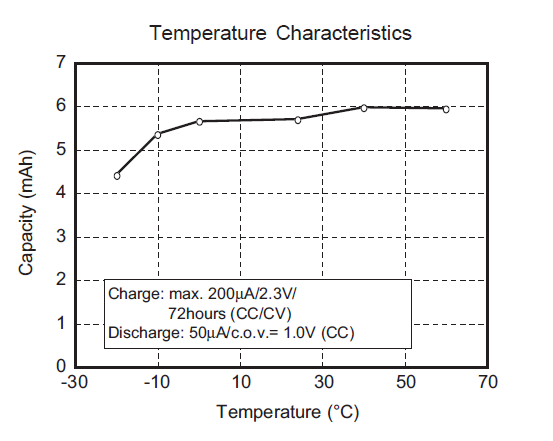

Temperature Characteristics

Temperature

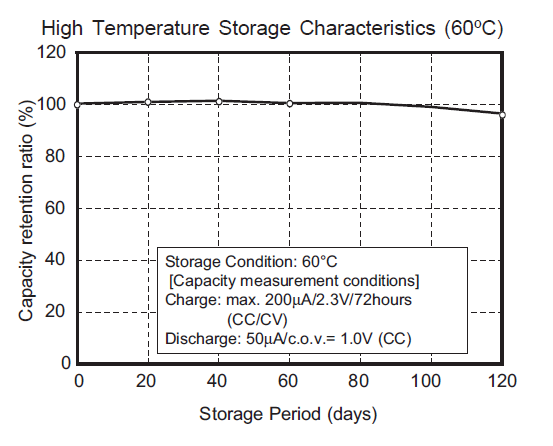

High Temperature Storage Characteristics (60℃)

Hight Temperature

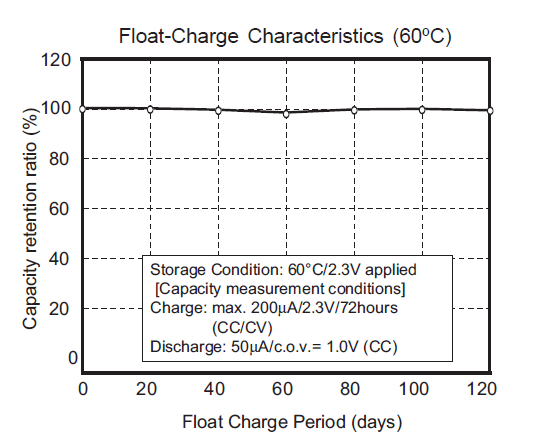

Float-Charge Characteristics  (60℃)

Float
