MS Lithium Rechargeable Battery MS414GE
SPECIFICATIONS
| Type | MS414GE |
|---|---|
| Nominal Voltage(V) | 3 |
| Charge Voltage (Standard Charge Voltage)(V) | 2.8 to 3.3(3.1) |
| Nominal Capacity(mAh) | 2.0 |
| Internal Impedance(Ω) | 100 |
| Standard Discharge Current(mA) | 0.010 |
| Maximum Discharge Current (Continuous)(mA) | 0.05 |
| Cycle Life (Time)100% D.O.D(Depth of Discharge) | 50 |
| Cycle Life (Time)20% D.O.D(Depth of Discharge) | 500 |
| Size Diameter(mm) | 4.8 |
| Size Height(mm) | 1.4 |
| Weight(g) | 0.08 |

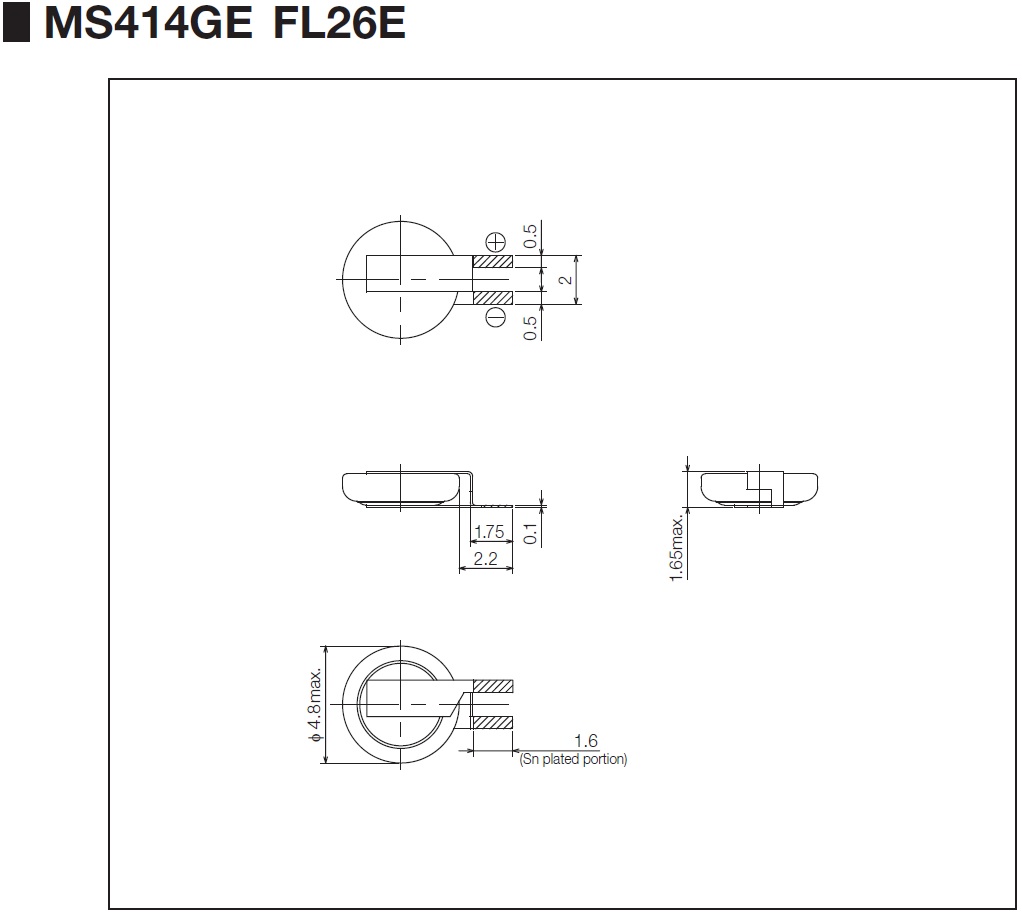

MS414GE FL26E
MS414GE is not reflowable. Please mount them on PCB by hand soldering.
Terminals
Click to enlarge.

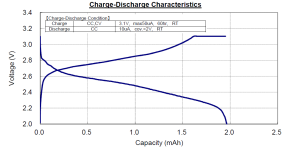

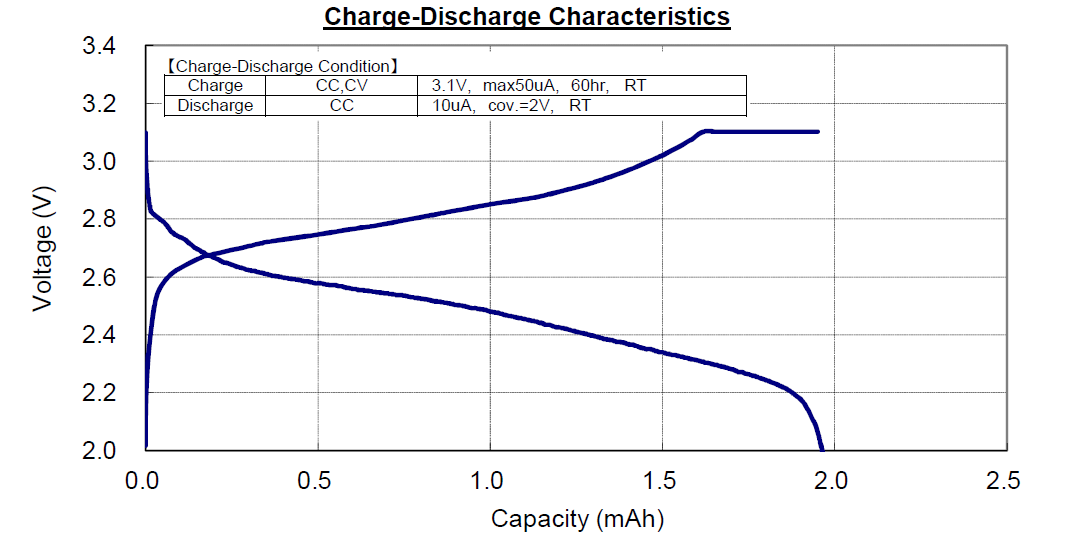

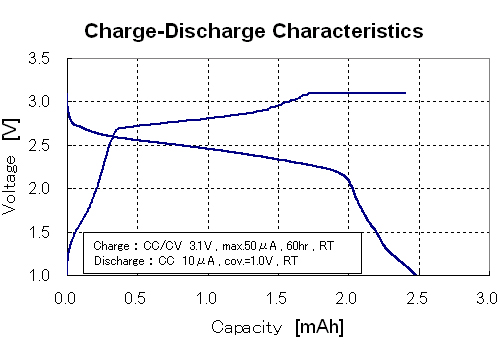

CHARACTERISTICS
Click to enlarge.
Please contact us for more details.
